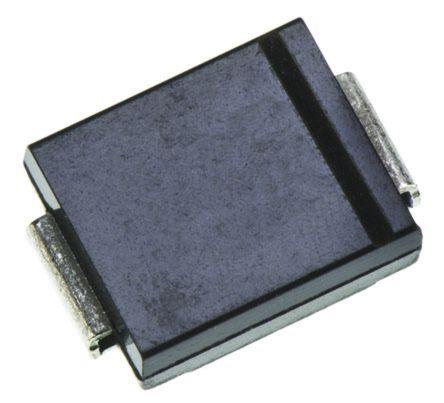

Bourns SMLJ26A-Q, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB

SMLJ26A-Q Bourns , Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB
Bourns

Product Information

Dimensions:
7.11 x 6.22 x 2.41mm
Direction Type:
Uni-Directional
Width:
6.22mm
Maximum Clamping Voltage:
42.1V
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Test Current:
1mA
Minimum Breakdown Voltage:
28.9V
Surge Current Rating:
71.2 A, 300 A
Maximum Reverse Leakage Current:
2µA
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
7.11mm
Pin Count:
2
Peak Pulse Power Dissipation:
3000W
Maximum Reverse Stand-off Voltage:
26V
Mounting Type:
Surface Mount
Height:
2.41mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 3000W 2-Pin DO-214AB manufactured by Bourns. The manufacturer part number is SMLJ26A-Q. The given dimensions of the product include 7.11 x 6.22 x 2.41mm. While is configured as uni-directional. Furthermore, the product is 6.22mm wide. It is supplied with 42.1v of maximum clamping voltage. The diode features a single configuration. The product complies with automotive standard - aec-q101. In addition, it has 1ma test current. It harbours a 28.9v of minimum breakdown voltage. It has about 71.2 a, 300 a surge current rating . The product has a maximum 2µa of reverse leakage current. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 7.11mm. It contains 2 pins. It has 3000w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 26v. The product is available in surface mount configuration. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -55 °c.
