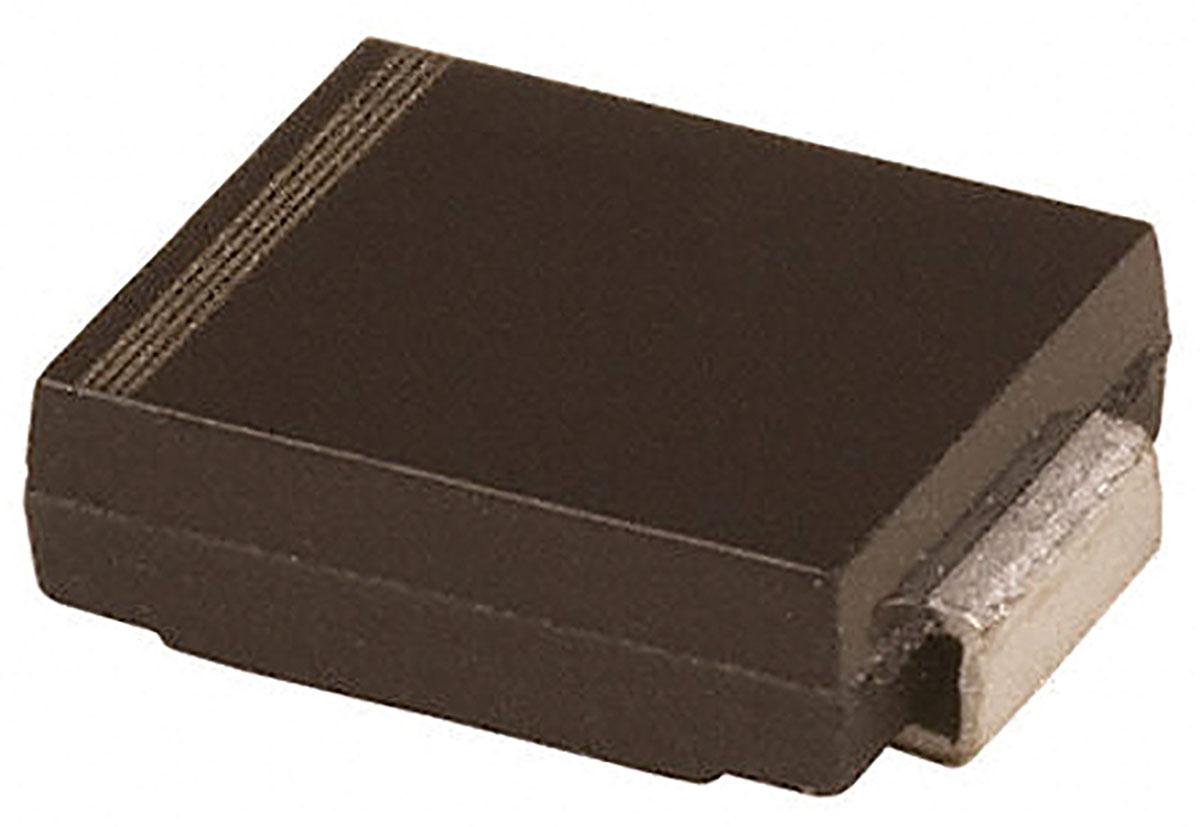

Bourns 1.5SMC16A, Uni-Directional TVS Diode, 1500W, 2-Pin DO214AB

1-5SMC16A Bourns 1.5SMC16A, Uni-Directional TVS Diode, 1500W, 2-Pin DO214AB
Bourns

Product Information

Dimensions:
7.11 x 6.22 x 2.48mm
Direction Type:
Uni-Directional
Width:
6.22mm
Maximum Clamping Voltage:
22.5V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
100A
Minimum Breakdown Voltage:
15.2V
Surge Current Rating:
67.6A
Maximum Reverse Leakage Current:
1µA
Package Type:
DO214AB
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
7.11mm
Pin Count:
2
Peak Pulse Power Dissipation:
1500W
Maximum Reverse Stand-off Voltage:
13.6V
Mounting Type:
Surface Mount
Height:
2.48mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1500W 2-Pin DO214AB manufactured by Bourns. The manufacturer part number is 1.5SMC16A. The given dimensions of the product include 7.11 x 6.22 x 2.48mm. While is configured as uni-directional. Furthermore, the product is 6.22mm wide. It is supplied with 22.5v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has 100a maximum peak pulse current. It harbours a 15.2v of minimum breakdown voltage. It has about 67.6a surge current rating . The product has a maximum 1µa of reverse leakage current. The package is a sort of do214ab. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 7.11mm. It contains 2 pins. It has 1500w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 13.6v. The product is available in surface mount configuration. In addition, the height is 2.48mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
1.5SMC TVS Diode Series(Technical Reference)
