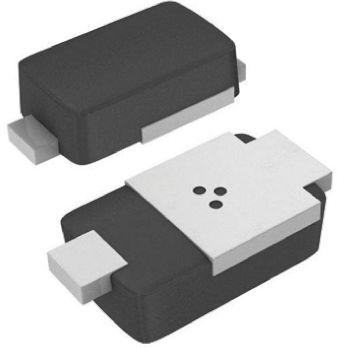

Vishay SMP14A-M3/84A, Uni-Directional TVS Diode, 400W, 2-Pin SMP

SMP14A-M3-84A Vishay SMP14A-M3/84A, Uni-Directional TVS Diode, 400W, 2-Pin SMP
Vishay

Product Information

Maximum Peak Pulse Current:
17.2A
Maximum Reverse Stand-off Voltage:
14V
Dimensions:
3.61 x 2.18 x 1.15mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
15.6V
Peak Pulse Power Dissipation:
400W
Height:
1.15mm
Width:
2.18mm
Length:
3.61mm
Package Type:
SMP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
23.2V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 400W 2-Pin SMP manufactured by Vishay. The manufacturer part number is SMP14A-M3/84A. It also has 17.2a maximum peak pulse current. While the maximised reverse stand-off voltage includes 14v. The given dimensions of the product include 3.61 x 2.18 x 1.15mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 15.6v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 1.15mm. Furthermore, the product is 2.18mm wide. Its accurate length is 3.61mm. The package is a sort of smp. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 23.2v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMP3V3 thru SMP36A Surface Mount TRANZZORB Transient Voltage Suppressors Data Sheet(Technical Reference)
