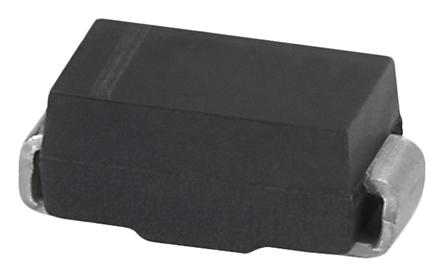

This is Uni-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Vishay. The manufacturer part number is SMAJ36A-E3/51. It also has 6.9a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.5 x 2.79 x 2.087mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.087mm. Furthermore, the product is 2.79mm wide. Its accurate length is 4.5mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
For more information please check the datasheets.
