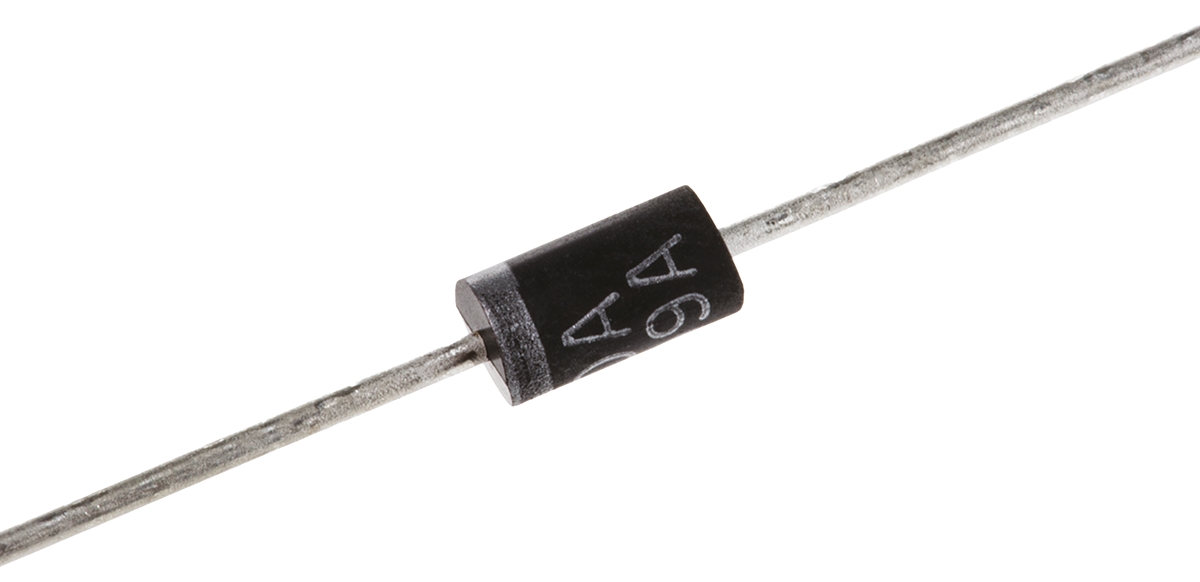

Vishay SA30A-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC

SA30A-E3-54 Vishay SA30A-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC
SA30A-E3/54
Vishay

Product Information

Diameter:
3.6mm
Maximum Reverse Stand-off Voltage:
30V
Dimensions:
3.6 (Dia.) x 7.6mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
1µA
ESD Protection:
Yes
Peak Pulse Power Dissipation:
500W
Maximum Peak Pulse Current:
10A
Maximum Clamping Voltage:
48.4V
Length:
7.6mm
Package Type:
DO-204AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Minimum Breakdown Voltage:
33.3V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 500W 2-Pin DO-204AC manufactured by Vishay. The manufacturer part number is SA30A-E3/54. Its diameter is 3.6mm. While the maximised reverse stand-off voltage includes 30v. The given dimensions of the product include 3.6 (dia.) x 7.6mm. The product is available in through hole configuration. While is configured as uni-directional. It has a maximum operating temperature of +175 °c. The product has a maximum 1µa of reverse leakage current. ESD Protected - yes. It has 500w of peak pulse power dissipation. It also has 10a maximum peak pulse current. It is supplied with 48.4v of maximum clamping voltage. Its accurate length is 7.6mm. The package is a sort of do-204ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It harbours a 33.3v of minimum breakdown voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
Contains SVHC - Lead - CAS No. 7439-92-1(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
