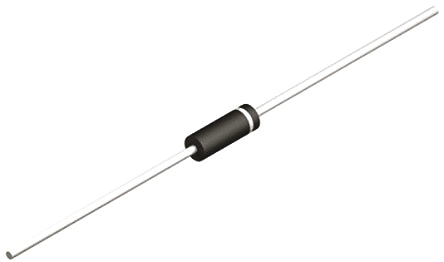

Vishay SA13A-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC

SA13A-E3-54 Vishay SA13A-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC
Vishay

Product Information

Diameter:
3.6mm
Maximum Reverse Stand-off Voltage:
13V
Dimensions:
7.6 x 3.6mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
14.4V
Peak Pulse Power Dissipation:
500W
Maximum Peak Pulse Current:
23.3A
Maximum Clamping Voltage:
21.5V
Length:
7.6mm
Package Type:
DO-204AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 500W 2-Pin DO-204AC manufactured by Vishay. The manufacturer part number is SA13A-E3/54. Its diameter is 3.6mm. While the maximised reverse stand-off voltage includes 13v. The given dimensions of the product include 7.6 x 3.6mm. The product is available in through hole configuration. While is configured as uni-directional. It has a maximum operating temperature of +175 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 14.4v of minimum breakdown voltage. It has 500w of peak pulse power dissipation. It also has 23.3a maximum peak pulse current. It is supplied with 21.5v of maximum clamping voltage. Its accurate length is 7.6mm. The package is a sort of do-204ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
Contains SVHC - Lead - CAS No. 7439-92-1(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
SA5.0A thru SA170CA, TRANSZORB Transient Voltage Suppressors(Technical Reference)
