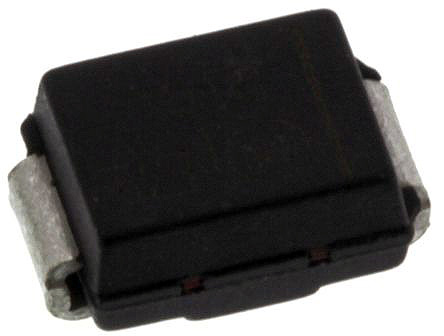

Diodes Inc SMBJ7.0A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

Enrgtech Part No: ET14157802
|
Manufacturer Part No:
SMBJ7.0A-13-F
|
Manufacturer: DiodesZetex

SMBJ7-0A-13-F Diodes Inc SMBJ7.0A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

Product Information

Maximum Peak Pulse Current:

50A

Maximum Reverse Stand-off Voltage:

Dimensions:

4.57 x 3.94 x 2.42mm

Mounting Type:

Surface Mount

Direction Type:

Uni-Directional

Surge Current Rating:

100A

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

200µA

Minimum Breakdown Voltage:

7.78V

Peak Pulse Power Dissipation:

600W

Height:

2.42mm

Width:

3.94mm

Checking for live stock

This is Diodes Inc Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by DiodesZetex. The manufacturer part number is SMBJ7.0A-13-F. It also has 50a maximum peak pulse current. While the maximised reverse stand-off voltage includes 7v. The given dimensions of the product include 4.57 x 3.94 x 2.42mm. The product is available in surface mount configuration. While is configured as uni-directional. It has about 100a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 200µa of reverse leakage current. It harbours a 7.78v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.42mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 12v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.

ESD Control Selection Guide V1(Technical Reference)

SMBJ5.0(C)A - SMBJ170(C)A, 600W Surface Mount Transient Voltage Suppressor(Technical Reference)
