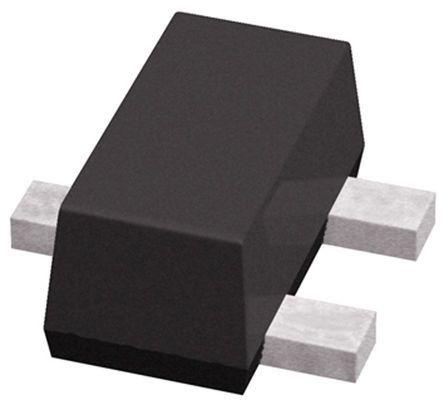

Infineon ESD5V3U2U-03F H6327, Dual Uni-Directional ESD Protection Diode, 3-Pin TSFP

ESD5V3U2U-03F-H6327 Infineon ESD5V3U2U-03F H6327, Dual Uni-Directional ESD Protection Diode, 3-Pin TSFP
Infineon

Product Information

Maximum Peak Pulse Current:
3A
Maximum Operating Temperature:
+125 °C
Dimensions:
1.2 x 1.2 x 0.55mm
Mounting Type:
Surface Mount
Capacitance:
0.6pF
Maximum Reverse Leakage Current:
0.05µA
ESD Voltage:
20kV
Minimum Breakdown Voltage:
6V
Direction Type:
Uni-Directional
Height:
0.55mm
Width:
1.2mm
Length:
1.2mm
Package Type:
TSFP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
28V
Diode Configuration:
Common Anode
Pin Count:
3
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Dual Uni-Directional ESD Protection Diode 3-Pin TSFP manufactured by Infineon. The manufacturer part number is ESD5V3U2U-03F H6327. It also has 3a maximum peak pulse current. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 1.2 x 1.2 x 0.55mm. The product is available in surface mount configuration. It provides a 0.6pf of capacitance value. The product has a maximum 0.05µa of reverse leakage current. Moreover, it has about 20kv ESD voltage . It harbours a 6v of minimum breakdown voltage. While is configured as uni-directional. In addition, the height is 0.55mm. Furthermore, the product is 1.2mm wide. Its accurate length is 1.2mm. The package is a sort of tsfp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 28v of maximum clamping voltage. The diode features a common anode configuration. It contains 3 pins. In addition, it has 1ma test current.

pdf icon
TVS Diode, ESD5V3U2U Series, Uni-directional Ultra Low ESD / Transient Protection Diode(Technical Reference)
