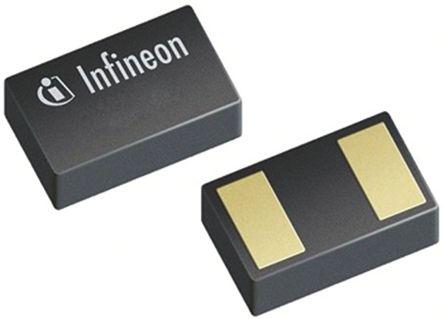

Infineon ESD112B102ELSE6327XTSA1, Bi-Directional ESD Protection Diode, 2-Pin TSSLP

ESD112B102ELSE6327XTSA1 Infineon , Bi-Directional ESD Protection Diode, 2-Pin TSSLP
Infineon

Product Information

Maximum Peak Pulse Current:
3A
Maximum Reverse Stand-off Voltage:
5.3V
Dimensions:
0.62 x 0.32 x 0.26mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
7V
ESD Protection:
Yes
Height:
0.26mm
Width:
0.32mm
Length:
0.62mm
Package Type:
TSSLP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
50nA
Maximum Clamping Voltage:
21V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional ESD Protection Diode 2-Pin TSSLP manufactured by Infineon. The manufacturer part number is ESD112B102ELSE6327XTSA1. It also has 3a maximum peak pulse current. While the maximised reverse stand-off voltage includes 5.3v. The given dimensions of the product include 0.62 x 0.32 x 0.26mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +125 °c. It harbours a 7v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.26mm. Furthermore, the product is 0.32mm wide. Its accurate length is 0.62mm. The package is a sort of tsslp. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 50na of reverse leakage current. It is supplied with 21v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
ESD112-B1-02 Series, Bi-directional Ultra-low Capacitance ESD Protection Diode(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
