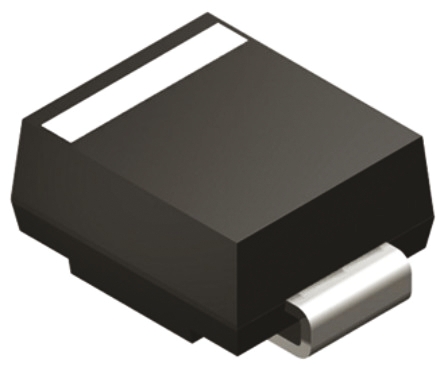

Vishay SMBJ8.0A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ8-0A-E3-52 Vishay SMBJ8.0A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Vishay

Product Information

Maximum Peak Pulse Current:
44.1A
Maximum Reverse Stand-off Voltage:
8V
Dimensions:
4.57 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
50µA
Minimum Breakdown Voltage:
8.89V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
13.6V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMBJ8.0A-E3/52. It also has 44.1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 8v. The given dimensions of the product include 4.57 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 50µa of reverse leakage current. It harbours a 8.89v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 13.6v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMBJ5.0A thru SMBJ188A, Surface Mount TRANSZORB Transient Voltage Suppressors(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
