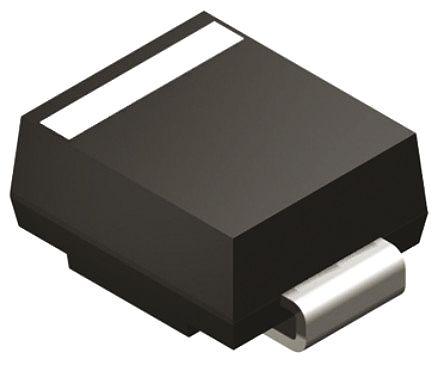

Vishay SMB10J5.0A-E3/52, Uni-Directional TVS Diode, 1000W, 2-Pin DO-214AA

SMB10J5-0A-E3-52 Vishay SMB10J5.0A-E3/52, Uni-Directional TVS Diode, 1000W, 2-Pin DO-214AA
Vishay

Product Information

Maximum Peak Pulse Current:
108.7A
Dimensions:
4.57 x 3.94 x 2.237mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1mA
Minimum Breakdown Voltage:
6.4V
Peak Pulse Power Dissipation:
1000W
Height:
2.237mm
Width:
3.94mm
Length:
4.57mm
Maximum Reverse Stand-off Voltage:
5V
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
9.2V
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1000W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMB10J5.0A-E3/52. It also has 108.7a maximum peak pulse current. The given dimensions of the product include 4.57 x 3.94 x 2.237mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1ma of reverse leakage current. It harbours a 6.4v of minimum breakdown voltage. It has 1000w of peak pulse power dissipation. In addition, the height is 2.237mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. While the maximised reverse stand-off voltage includes 5v. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 9.2v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.

pdf icon
SMB10(8)J5.0(C)A thru SMB10(8)J40(C)A, High Power Density Surface Mount TRANSZORB Transient Voltage Suppressors(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
