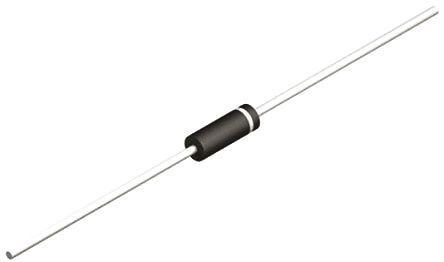

Vishay 1N6385-E3/54, Bi-Directional TVS Diode, 1500W, 2-Pin 1.5KE

1N6385-E3-54 Vishay 1N6385-E3/54, Bi-Directional TVS Diode, 1500W, 2-Pin 1.5KE
Vishay

Product Information

Diameter:
5.3mm
Maximum Reverse Stand-off Voltage:
8.5V
Dimensions:
5.3 (Dia.) x 9.5mm
Mounting Type:
Through Hole
Direction Type:
Bi-Directional
Surge Current Rating:
200A
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
10µA
ESD Protection:
Yes
Peak Pulse Power Dissipation:
1500W
Maximum Peak Pulse Current:
103A
Maximum Clamping Voltage:
14.5V
Length:
9.5mm
Package Type:
1.5KE
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Minimum Breakdown Voltage:
9.5V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 1500W 2-Pin 1.5KE manufactured by Vishay. The manufacturer part number is 1N6385-E3/54. Its diameter is 5.3mm. While the maximised reverse stand-off voltage includes 8.5v. The given dimensions of the product include 5.3 (dia.) x 9.5mm. The product is available in through hole configuration. While is configured as bi-directional. It has about 200a surge current rating . It has a maximum operating temperature of +175 °c. The product has a maximum 10µa of reverse leakage current. ESD Protected - yes. It has 1500w of peak pulse power dissipation. It also has 103a maximum peak pulse current. It is supplied with 14.5v of maximum clamping voltage. Its accurate length is 9.5mm. The package is a sort of 1.5ke. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It harbours a 9.5v of minimum breakdown voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
ICTE5 thru ICTE18C, 1N6373 thru 1N6386, TRANSZORB Transient Voltage Suppressors(Technical Reference)
