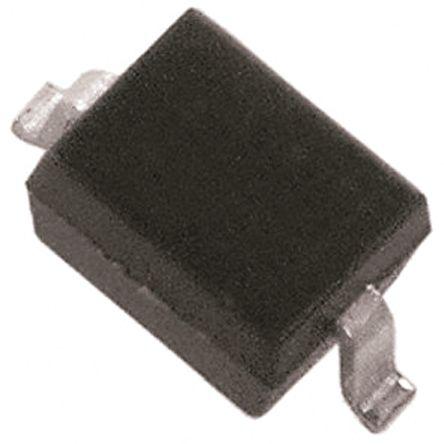

NXP PESD3V3U1UA, Uni-Directional ESD Protection Diode, 2-Pin SOD-323

PESD3V3U1UA NXP , Uni-Directional ESD Protection Diode, 2-Pin SOD-323
Nexperia

Product Information

Maximum Reverse Stand-off Voltage:
3.3V
Dimensions:
1.8 x 1.35 x 1.1mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
0.1µA
ESD Protection:
Yes
Height:
1.1mm
Width:
1.35mm
Length:
1.8mm
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Minimum Breakdown Voltage:
4.5V
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is NXP Uni-Directional ESD Protection Diode 2-Pin SOD-323 manufactured by Nexperia. The manufacturer part number is PESD3V3U1UA. While the maximised reverse stand-off voltage includes 3.3v. The given dimensions of the product include 1.8 x 1.35 x 1.1mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 0.1µa of reverse leakage current. ESD Protected - yes. In addition, the height is 1.1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 1.8mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It harbours a 4.5v of minimum breakdown voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
PESD3V3U1UA, PESD3V3U1UB, PESD3V3U1UL Ultra low capacitance unidirectional ESD protection diodes datasheet(Technical Reference)
