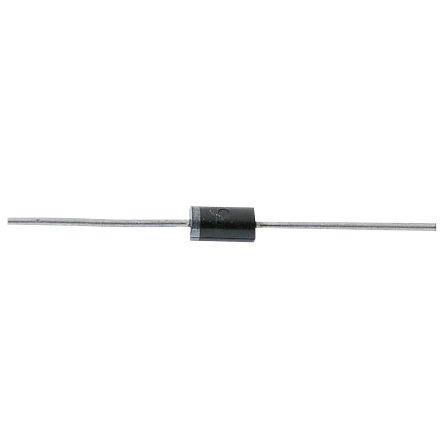

HY Electronic Corp 1.5KE100A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-201

1-5KE100A HY Electronic Corp 1.5KE100A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-201
HY Electronic Corp

Product Information

Diameter:
5.6mm
Maximum Reverse Stand-off Voltage:
85.5V
Dimensions:
5.6 (Dia.) x 9.5 (L)mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Surge Current Rating:
200A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
95V
Peak Pulse Power Dissipation:
1500W
Maximum Peak Pulse Current:
11A
Length:
9.5mm
Package Type:
DO-201
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
137V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1500W 2-Pin DO-201 manufactured by HY Electronic Corp. The manufacturer part number is 1.5KE100A. Its diameter is 5.6mm. While the maximised reverse stand-off voltage includes 85.5v. The given dimensions of the product include 5.6 (dia.) x 9.5 (l)mm. The product is available in through hole configuration. While is configured as uni-directional. It has about 200a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 95v of minimum breakdown voltage. It has 1500w of peak pulse power dissipation. It also has 11a maximum peak pulse current. Its accurate length is 9.5mm. The package is a sort of do-201. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 137v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
HY 1.5KE Series Glass Passivated Transient Voltage Suppressor(Technical Reference)
