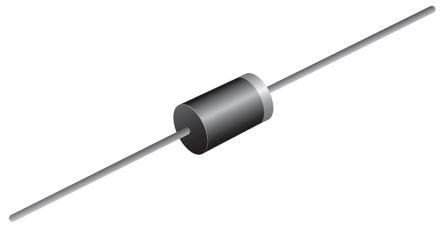

Vishay SAC12-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC

SAC12-E3-54 Vishay SAC12-E3/54, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC
Vishay

Product Information

Diameter:
3.6mm
Maximum Reverse Stand-off Voltage:
12V
Dimensions:
3.6 x 7.6mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
13.3V
Peak Pulse Power Dissipation:
500W
Maximum Peak Pulse Current:
25A
Maximum Clamping Voltage:
19V
Capacitance:
50pF
Length:
7.6mm
Package Type:
DO-204AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 500W 2-Pin DO-204AC manufactured by Vishay. The manufacturer part number is SAC12-E3/54. Its diameter is 3.6mm. While the maximised reverse stand-off voltage includes 12v. The given dimensions of the product include 3.6 x 7.6mm. The product is available in through hole configuration. While is configured as uni-directional. It has a maximum operating temperature of +175 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 13.3v of minimum breakdown voltage. It has 500w of peak pulse power dissipation. It also has 25a maximum peak pulse current. It is supplied with 19v of maximum clamping voltage. It provides a 50pf of capacitance value. Its accurate length is 7.6mm. The package is a sort of do-204ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SAC12-E3/54 Data Sheet(Technical Reference)
