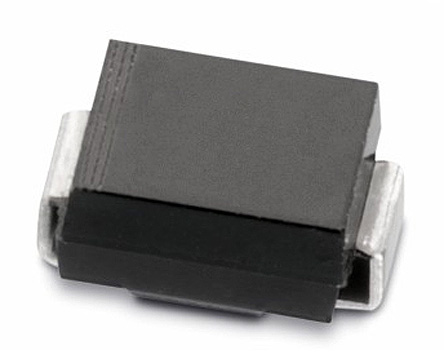

Wurth Elektronik 824521700, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

824521700 Wurth Elektronik , Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
50A
Dimensions:
4.32 x 3.62 x 2.3mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
400µA
Minimum Breakdown Voltage:
8.19V
Peak Pulse Power Dissipation:
600W
Height:
2.3mm
Width:
3.62mm
Length:
4.32mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
12V
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Wurth Elektronik. The manufacturer part number is 824521700. It also has 50a maximum peak pulse current. The given dimensions of the product include 4.32 x 3.62 x 2.3mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 400µa of reverse leakage current. It harbours a 8.19v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.3mm. Furthermore, the product is 3.62mm wide. Its accurate length is 4.32mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 12v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
pdf icon
TVS Diode Bidirectional 600W Datasheet(Technical Reference)
