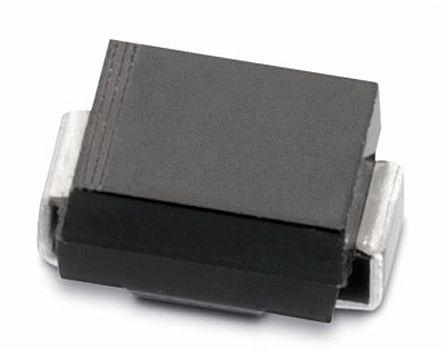

Wurth Elektronik 824501581, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

824501581 Wurth Elektronik , Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
4.3A
Dimensions:
4.24 x 2.67 x 2.14mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
67.8V
Peak Pulse Power Dissipation:
400W
Height:
2.14mm
Width:
2.67mm
Length:
4.24mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
93.6V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Wurth Elektronik. The manufacturer part number is 824501581. It also has 4.3a maximum peak pulse current. The given dimensions of the product include 4.24 x 2.67 x 2.14mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 67.8v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.14mm. Furthermore, the product is 2.67mm wide. Its accurate length is 4.24mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 93.6v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
TVS Diode Bidirectional 400W Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
