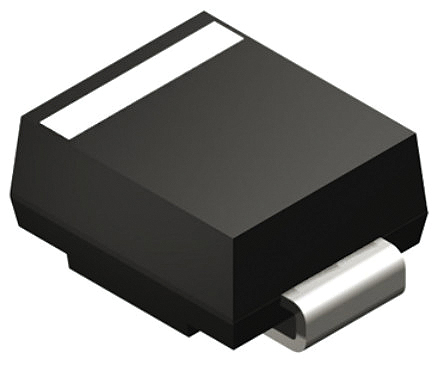

HY Electronic Corp SMBJ5.0A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ5-0A HY Electronic Corp SMBJ5.0A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
HY Electronic Corp

Product Information

Maximum Peak Pulse Current:
65.2A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
4.7 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Surge Current Rating:
100A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
800µA
Minimum Breakdown Voltage:
6.4V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.7mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
9.2V
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by HY Electronic Corp. The manufacturer part number is SMBJ5.0A. It also has 65.2a maximum peak pulse current. While the maximised reverse stand-off voltage includes 5v. The given dimensions of the product include 4.7 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as uni-directional. It has about 100a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 800µa of reverse leakage current. It harbours a 6.4v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.7mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 9.2v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.
