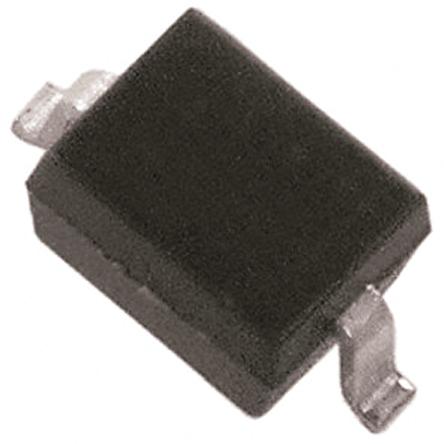

Diodes Inc D12V0H1U2WS-7, Uni-Directional TVS Diode, 600W, 2-Pin SOD-323

D12V0H1U2WS-7 Diodes Inc , Uni-Directional TVS Diode, 600W, 2-Pin SOD-323
DiodesZetex

Product Information

Maximum Peak Pulse Current:
25A
Maximum Reverse Stand-off Voltage:
12V
Dimensions:
1.8 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
13.3V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
600W
Height:
1.1mm
Width:
1.4mm
Length:
1.8mm
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
100nA
Maximum Clamping Voltage:
24V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Uni-Directional TVS Diode 600W 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is D12V0H1U2WS-7. It also has 25a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12v. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +125 °c. It harbours a 13.3v of minimum breakdown voltage. ESD Protected - yes. It has 600w of peak pulse power dissipation. In addition, the height is 1.1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 1.8mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 100na of reverse leakage current. It is supplied with 24v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
