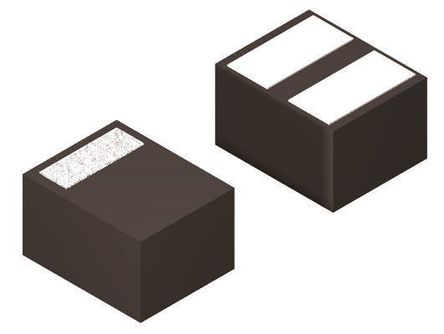

Semtech UCLAMP1201P.TCT, Uni-Directional TVS Diode, 200W, 2-Pin SLP EP

UCLAMP1201P-TCT Semtech UCLAMP1201P.TCT, Uni-Directional TVS Diode, 200W, 2-Pin SLP EP
Semtech

Product Information

Maximum Peak Pulse Current:
8A
Maximum Reverse Stand-off Voltage:
12V
Dimensions:
1 x 0.6 x 0.47mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
13.3V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
200W
Height:
0.47mm
Width:
0.6mm
Length:
1mm
Package Type:
SLP EP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
1µA
Maximum Clamping Voltage:
25V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 200W 2-Pin SLP EP manufactured by Semtech. The manufacturer part number is UCLAMP1201P.TCT. It also has 8a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12v. The given dimensions of the product include 1 x 0.6 x 0.47mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +125 °c. It harbours a 13.3v of minimum breakdown voltage. ESD Protected - yes. It has 200w of peak pulse power dissipation. In addition, the height is 0.47mm. Furthermore, the product is 0.6mm wide. Its accurate length is 1mm. The package is a sort of slp ep. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 1µa of reverse leakage current. It is supplied with 25v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
