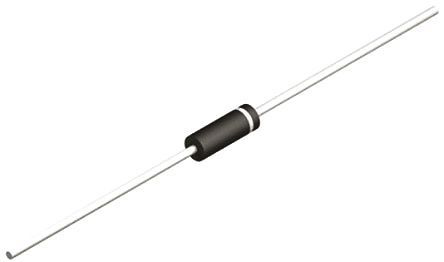

Vishay 1N6282A-E3/54, Uni-Directional TVS Diode, 1500W, 2-Pin 1.5KE

1N6282A-E3-54 Vishay 1N6282A-E3/54, Uni-Directional TVS Diode, 1500W, 2-Pin 1.5KE
Vishay

Product Information

Diameter:
5.3mm
Maximum Reverse Stand-off Voltage:
25.6V
Dimensions:
5.3 (Dia.) x 9.5mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Surge Current Rating:
200A
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
1µA
ESD Protection:
Yes
Peak Pulse Power Dissipation:
1500W
Maximum Peak Pulse Current:
36.2A
Maximum Clamping Voltage:
41.4V
Length:
9.5mm
Package Type:
1.5KE
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Minimum Breakdown Voltage:
28.5V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1500W 2-Pin 1.5KE manufactured by Vishay. The manufacturer part number is 1N6282A-E3/54. Its diameter is 5.3mm. While the maximised reverse stand-off voltage includes 25.6v. The given dimensions of the product include 5.3 (dia.) x 9.5mm. The product is available in through hole configuration. While is configured as uni-directional. It has about 200a surge current rating . It has a maximum operating temperature of +175 °c. The product has a maximum 1µa of reverse leakage current. ESD Protected - yes. It has 1500w of peak pulse power dissipation. It also has 36.2a maximum peak pulse current. It is supplied with 41.4v of maximum clamping voltage. Its accurate length is 9.5mm. The package is a sort of 1.5ke. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It harbours a 28.5v of minimum breakdown voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
1.5KE6.8A thru 1.5KE540A, 1N6267A thru 1N6303A, TRANSZORB Transient Voltage Suppressors(Technical Reference)
pdf icon
Contains SVHC - Lead - CAS No. 7439-92-1(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
