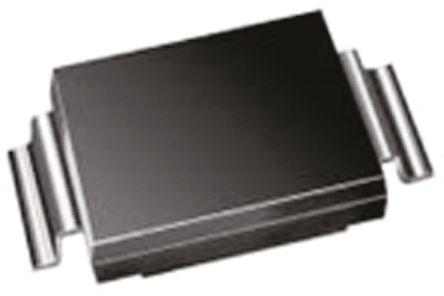

Vishay SMCG33CA-E3/57T, Bi-Directional TVS Diode, 1500W, 2-Pin DO-215AB

SMCG33CA-E3-57T Vishay SMCG33CA-E3/57T, Bi-Directional TVS Diode, 1500W, 2-Pin DO-215AB
Vishay

Product Information

Maximum Peak Pulse Current:
28.1A
Maximum Reverse Stand-off Voltage:
33V
Dimensions:
7.11 x 6.22 x 2.21mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
36.7V
Peak Pulse Power Dissipation:
1500W
Height:
2.21mm
Width:
6.22mm
Length:
7.11mm
Package Type:
DO-215AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
53.3V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 1500W 2-Pin DO-215AB manufactured by Vishay. The manufacturer part number is SMCG33CA-E3/57T. It also has 28.1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 33v. The given dimensions of the product include 7.11 x 6.22 x 2.21mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 36.7v of minimum breakdown voltage. It has 1500w of peak pulse power dissipation. In addition, the height is 2.21mm. Furthermore, the product is 6.22mm wide. Its accurate length is 7.11mm. The package is a sort of do-215ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 53.3v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMCG5.0A thru SMCG188CA, Surface Mount TRANSZORB Transient Voltage Suppressors(Technical Reference)
