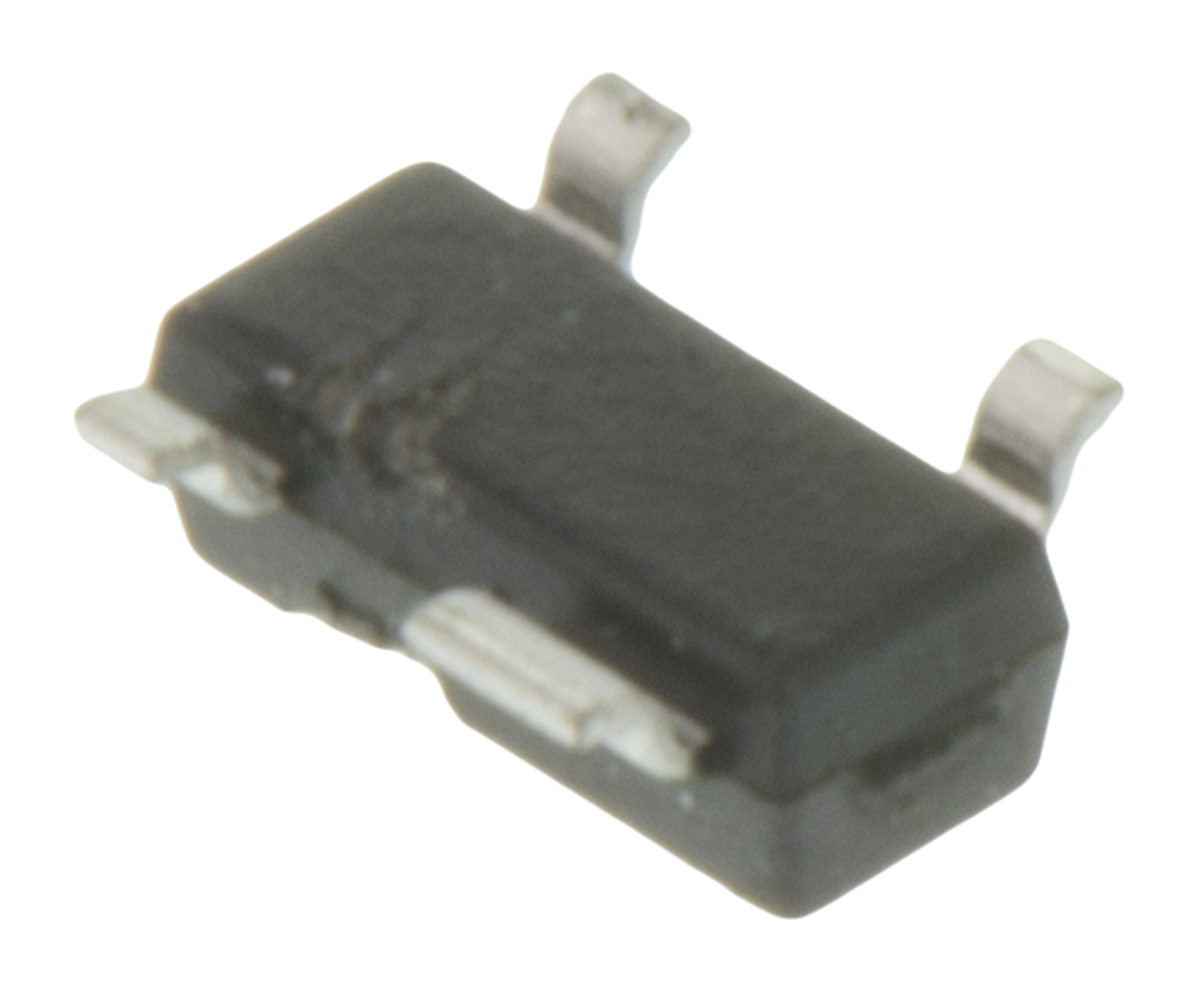

Wurth Elektronik 8240136, Dual Uni-Directional TVS Diode Array, 4-Pin SOT-143

Enrgtech Part No: ET13844299
|
Manufacturer Part No:
8240136
|
Manufacturer: Wurth Elektronik

8240136 Wurth Elektronik , Dual Uni-Directional TVS Diode Array, 4-Pin SOT-143

Product Information

Maximum Peak Pulse Current:

12A

Maximum Reverse Stand-off Voltage:

3.3V

Dimensions:

2.95 x 1.3 x 1mm

Mounting Type:

Surface Mount

Direction Type:

Uni-Directional

Maximum Operating Temperature:

+125 °C

Minimum Breakdown Voltage:

4.5V

ESD Protection:

Yes

Height:

1mm

Width:

1.3mm

Length:

2.95mm

Package Type:

SOT-143

Checking for live stock

This is Dual Uni-Directional TVS Diode Array 4-Pin SOT-143 manufactured by Wurth Elektronik. The manufacturer part number is 8240136. It also has 12a maximum peak pulse current. While the maximised reverse stand-off voltage includes 3.3v. The given dimensions of the product include 2.95 x 1.3 x 1mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +125 °c. It harbours a 4.5v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 1mm. Furthermore, the product is 1.3mm wide. Its accurate length is 2.95mm. The package is a sort of sot-143. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 5µa of reverse leakage current. It is supplied with 6v of maximum clamping voltage. The diode features a complex array configuration. It contains 4 pins. In addition, it has 1ma test current.

8240136, TVS Diode Array WE-TVS, SOT143-4L(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)
