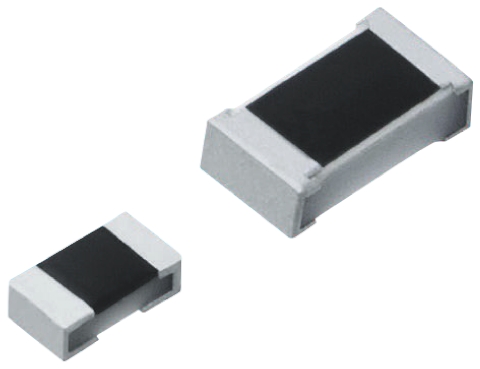

Panasonic EZAEG2A50AX, TVS Diode, 2-Pin 0402 (1005M)

EZAEG2A50AX Panasonic , TVS Diode, 2-Pin 0402 (1005M)
Panasonic

Product Information

Dimensions:
1.0 x 0.5 x 0.38mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Height:
0.38mm
Width:
0.5mm
Length:
1mm
Package Type:
0402 (1005M)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Configuration:
Single
Pin Count:
2
Test Current:
2A
RoHs Compliant
Checking for live stock

This is TVS Diode 2-Pin 0402 (1005M) manufactured by Panasonic. The manufacturer part number is EZAEG2A50AX. The given dimensions of the product include 1.0 x 0.5 x 0.38mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. In addition, the height is 0.38mm. Furthermore, the product is 0.5mm wide. Its accurate length is 1mm. The package is a sort of 0402 (1005m). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins. In addition, it has 2a test current.

pdf icon
EZAEG2A, 3A ESD Suppressor Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
