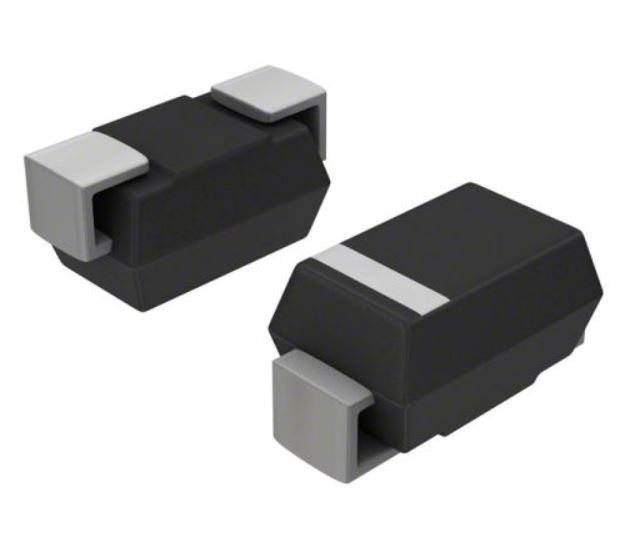

Vishay SMBJ24A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ24A-E3-52 Vishay SMBJ24A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Vishay

Product Information

Maximum Peak Pulse Current:
15.4A
Maximum Reverse Stand-off Voltage:
24V
Dimensions:
4.57 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
26.7V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
38.9V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMBJ24A-E3/52. It also has 15.4a maximum peak pulse current. While the maximised reverse stand-off voltage includes 24v. The given dimensions of the product include 4.57 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 26.7v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 38.9v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMBJ5.0A thru SMBJ188A, Surface Mount TRANSZORB Transient Voltage Suppressors(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SMBJ24A-E3/52 on website for other similar products.
We accept all major payment methods for all products including ET13824800. Please check your shopping cart at the time of order.
You can order Vishay brand products with SMBJ24A-E3/52 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay SMBJ24A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA. You can also check on our website or by contacting our customer support team for further order details on Vishay SMBJ24A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13824800 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13824800.
Yes. We ship SMBJ24A-E3/52 Internationally to many countries around the world.
