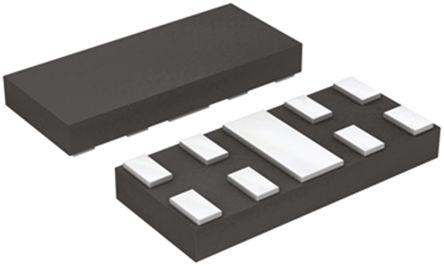

Infineon ESD5V3U4U-HDMIE6327, Quad Uni-Directional ESD Protection Array, 9-Pin TSLP

ESD5V3U4U-HDMIE6327 Infineon , Quad Uni-Directional ESD Protection Array, 9-Pin TSLP
Infineon

Product Information

Maximum Peak Pulse Current:
3A
Board Level Components:
Y
Dimensions:
2.3 x 1 x 0.26mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Height:
0.26mm
Width:
1mm
Length:
2.3mm
Package Type:
TSLP
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
0.05µA
Maximum Clamping Voltage:
28V
Diode Configuration:
Common Anode
Pin Count:
9
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional ESD Protection Array 9-Pin TSLP manufactured by Infineon. The manufacturer part number is ESD5V3U4U-HDMIE6327. It also has 3a maximum peak pulse current. It has board level components y . The given dimensions of the product include 2.3 x 1 x 0.26mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +125 °c. It harbours a 6v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.26mm. Furthermore, the product is 1mm wide. Its accurate length is 2.3mm. The package is a sort of tslp. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 0.05µa of reverse leakage current. It is supplied with 28v of maximum clamping voltage. The diode features a common anode configuration. It contains 9 pins. In addition, it has 1ma test current.

pdf icon
ESD5V3U4U-HDMI Uni-directional Ultra-low Capacitance ESD Protection Array(Technical Reference)
