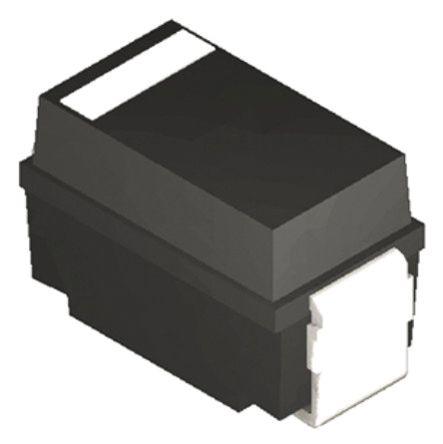

HY Electronic Corp SMAJ90CA, Bi-Directional TVS Diode, 400W, 2-Pin SMA

SMAJ90CA HY Electronic Corp , Bi-Directional TVS Diode, 400W, 2-Pin SMA
HY Electronic Corp

Product Information

Maximum Peak Pulse Current:
2.7A
Maximum Reverse Stand-off Voltage:
90V
Dimensions:
4.6 x 2.9 x 2.42mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Surge Current Rating:
40A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
12µA
Minimum Breakdown Voltage:
100V
Peak Pulse Power Dissipation:
400W
Height:
2.42mm
Width:
2.9mm
Length:
4.6mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
146V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 400W 2-Pin SMA manufactured by HY Electronic Corp. The manufacturer part number is SMAJ90CA. It also has 2.7a maximum peak pulse current. While the maximised reverse stand-off voltage includes 90v. The given dimensions of the product include 4.6 x 2.9 x 2.42mm. The product is available in surface mount configuration. While is configured as bi-directional. It has about 40a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 12µa of reverse leakage current. It harbours a 100v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.42mm. Furthermore, the product is 2.9mm wide. Its accurate length is 4.6mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 146v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
