Micro Commercial Co ESDLC3603P3-TP

ESDLC3603P3-TP Micro Commercial Co
Micro Commercial Co

Product Information

Voltage - Clamping (Max) @ Ipp:
20V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)

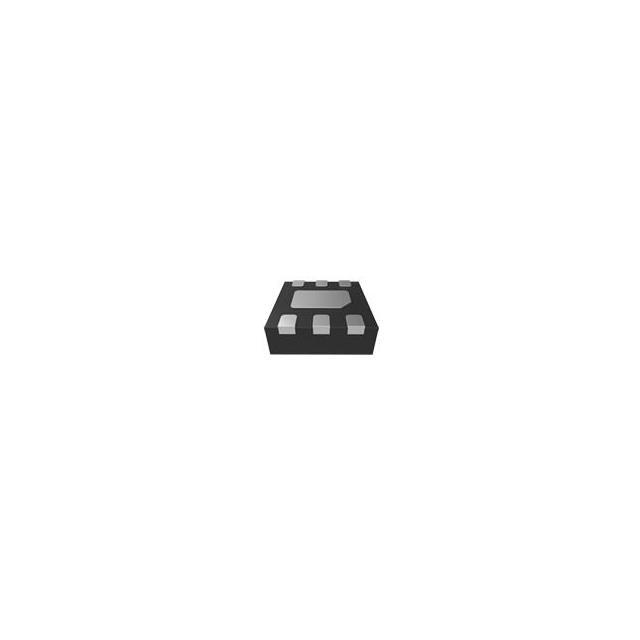

Package / Case:
6-UFDFN
Type:
Steering (Rail to Rail)
title:
ESDLC3603P3-TP
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6.5V
Applications:
General Purpose
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
3
standardLeadTime:
16 Weeks
Current - Peak Pulse (10/1000µs):
5A (8/20µs)
Voltage - Reverse Standoff (Typ):
5.5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-DFN (1.6x1.6)
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
0.8pF @ 1MHz
Power Line Protection:
Yes
Power - Peak Pulse:
100W
Base Product Number:
ESDLC3603
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is ESDLC3603P3-TP. The maximum clamping voltage is 20v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 6-ufdfn. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6.5v. The product is widely employed in general purpose. Its typical moisture sensitivity level is 1 (unlimited). It has 3 unidirectional channels. It has a long 16 weeks standard lead time. The peak pulse of the product is given as 5a (8/20µs). Provide with the typical reverse standoff voltage of 5.5v (max). The product is available in surface mount configuration. 6-dfn (1.6x1.6) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 0.8pf @ 1mhz. Power Line Protection: yes. Furthermore, the peak pulse power of the product is 100w. Moreover, it corresponds to esdlc3603, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro Commercial CA Prop65(Environmental Information)
pdf icon
Micro Commercial RoHS(Environmental Information)
pdf icon
Micro Commercial REACH(Environmental Information)
pdf icon
Halogen by Pkg Type 02/Sep/2023(PCN Design/Specification)
pdf icon
ESDLC3603P3(Datasheets)
pdf icon
Standardized with ECIA Labeling Specification 01/JUN/2024(PCN Packaging)
pdf icon
MCC Selection Guide(Other Related Documents)
