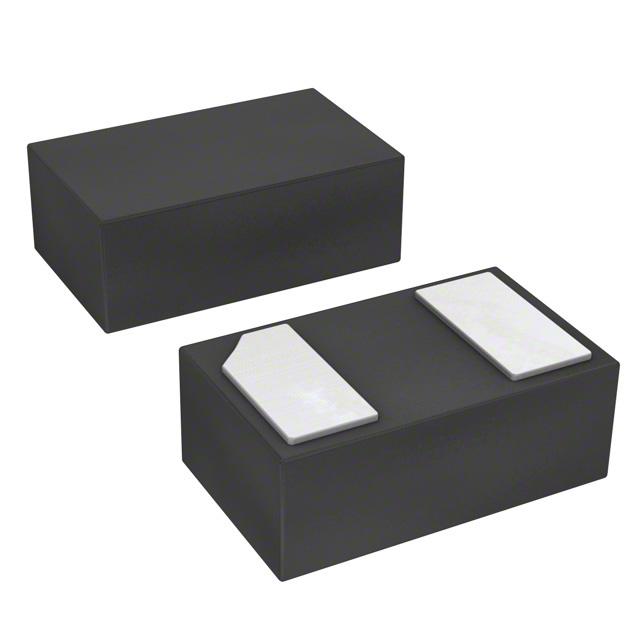

STMicroelectronics ESDAVLC12-1BV2
Product Information
Maximum Peak Pulse Current:
1.5A
Maximum Reverse Stand-off Voltage:
10.5V
Maximum Operating Temperature:
+125 °C
Dimensions:
0.42 x 0.22 x 0.2mm
Mounting Type:
Surface Mount
Capacitance:
10pF
Maximum Reverse Leakage Current:
70nA
ESD Voltage:
15kV
Minimum Breakdown Voltage:
12V
Direction Type:
Bi-Directional
Height:
0.2mm
Width:
0.22mm
Length:
0.42mm
Package Type:
ST01005
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
20V
Diode Configuration:
Single
Pin Count:
2
Voltage - Clamping (Max) @ Ipp:
20V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
2-SMD, No Lead
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
12V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
Voltage - Reverse Standoff (Typ):
10.5V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
ST01005
Capacitance @ Frequency:
7pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
ESDAVLC12
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESDAVLC12-1BV2 on website for other similar products.
We accept all major payment methods for all products including ET12165819. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with ESDAVLC12-1BV2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics ESDAVLC12-1BV2. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics ESDAVLC12-1BV2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12165819 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12165819.
Yes. We ship ESDAVLC12-1BV2 Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is ESDAVLC12-1BV2. It also has 1.5a maximum peak pulse current. While the maximised reverse stand-off voltage includes 10.5v. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 0.42 x 0.22 x 0.2mm. The product is available in surface mount configuration. It provides a 10pf of capacitance value. The product has a maximum 70na of reverse leakage current. Moreover, it has about 15kv ESD voltage . It harbours a 12v of minimum breakdown voltage. While is configured as bi-directional. In addition, the height is 0.2mm. Furthermore, the product is 0.22mm wide. Its accurate length is 0.42mm. The package is a sort of st01005. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 20v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. The maximum clamping voltage is 20v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 2-smd, no lead. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 12v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. The peak pulse of the product is given as 1a (8/20µs). Provide with the typical reverse standoff voltage of 10.5v. st01005 is the supplier device package value. It has a nominal capacitance and frequency values of 7pf @ 1mhz. Power Line Protection: no. Moreover, it corresponds to esdavlc12, a base product number of the product. The product is designated with the ear99 code number.
