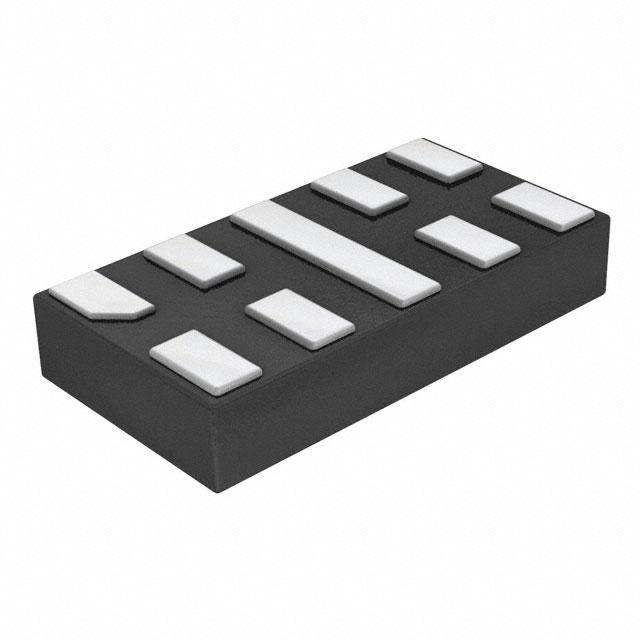

STMicroelectronics HSP051-4N10

HSP051-4N10 STMicroelectronics
HSP051-4N10
STMicroelectronics

Product Information

Maximum Reverse Stand-off Voltage:
3.6V
Dimensions:
1.95 x 1.05 x 0.35mm
Mounting Type:
Surface Mount
ESD Protection:
Yes
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
0.1µA
Minimum Breakdown Voltage:
4.5V
Height:
0.35mm
Width:
1.05mm
Length:
1.95mm
Package Type:
μQFN
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
Diode Configuration:
Complex Array
Pin Count:
10
Test Current:
1mA
Voltage - Clamping (Max) @ Ipp:
10V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
10-XFDFN
Type:
Steering (Rail to Rail)
title:
HSP051-4N10
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
4.5V
edacadModel:
HSP051-4N10 Models
Applications:
HDMI
edacadModelUrl:
/en/models/5032379
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
4
standardLeadTime:
15 Weeks
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
Voltage - Reverse Standoff (Typ):
3.6V
Mounting Type:
Surface Mount
Series:
HSP
Supplier Device Package:
10-uQFN (1.9x1)
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
0.4pF @ 200MHz ~ 2.5GHz
Power Line Protection:
Yes
Power - Peak Pulse:
-
Base Product Number:
HSP051
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is HSP051-4N10. While the maximised reverse stand-off voltage includes 3.6v. The given dimensions of the product include 1.95 x 1.05 x 0.35mm. The product is available in surface mount configuration. ESD Protected - yes. It has a maximum operating temperature of +150 °c. The product has a maximum 0.1µa of reverse leakage current. It harbours a 4.5v of minimum breakdown voltage. In addition, the height is 0.35mm. Furthermore, the product is 1.05mm wide. Its accurate length is 1.95mm. The package is a sort of μqfn. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The diode features a complex array configuration. It contains 10 pins. In addition, it has 1ma test current. The maximum clamping voltage is 10v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 10-xfdfn. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 4.5v. The product is widely employed in hdmi. Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. It has a long 15 weeks standard lead time. The peak pulse of the product is given as 1a (8/20µs). Provide with the typical reverse standoff voltage of 3.6v. The product hsp, is a highly preferred choice for users. 10-uqfn (1.9x1) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 0.4pf @ 200mhz ~ 2.5ghz. Power Line Protection: yes. Moreover, it corresponds to hsp051, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
HSP051-4M10, 4-Line ESD Protection for High Speed Lines(Technical Reference)
pdf icon
HSP051-4N10(Datasheets)
