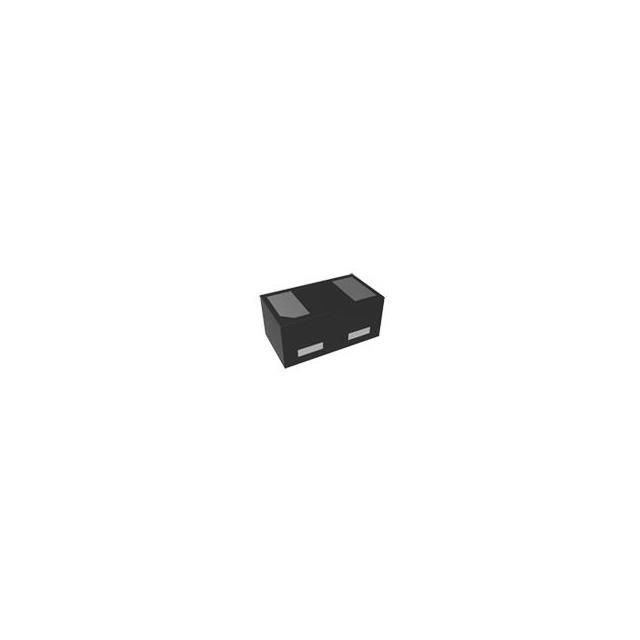

Micro Commercial Co ESDBV5V0AE1-TP

ESDBV5V0AE1-TP Micro Commercial Co
ESDBV5V0AE1-TP
Micro Commercial Co

Product Information

Voltage - Clamping (Max) @ Ipp:
13V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
0201 (0603 Metric)
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
5.6V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
Current - Peak Pulse (10/1000µs):
4A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
0201
Capacitance @ Frequency:
2pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
52W
Base Product Number:
ESDBV5V0
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is ESDBV5V0AE1-TP. The maximum clamping voltage is 13v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 0201 (0603 metric). It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 5.6v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. The peak pulse of the product is given as 4a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. 0201 is the supplier device package value. It has a nominal capacitance and frequency values of 2pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 52w. Moreover, it corresponds to esdbv5v0, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devices EOL 01/Feb/2019(PCN Obsolescence/ EOL)
pdf icon
ESDBV5V0AE1(Datasheets)
pdf icon
Halogen by Pkg Type 02/Sep/2023(PCN Design/Specification)
pdf icon
Micro Commercial CA Prop65(Environmental Information)
pdf icon
Micro Commercial RoHS(Environmental Information)
pdf icon
Micro Commercial REACH(Environmental Information)
