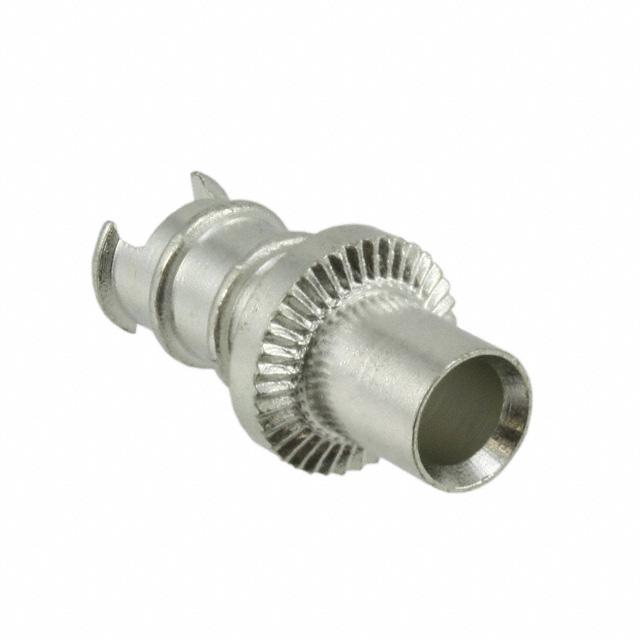

Harwin Inc. H2074Z01

H2074Z01 Harwin Inc.
H2074Z01
Harwin Inc.

Product Information

Length - Above Board:
0.344" (8.74mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Number of Turrets:
Triple
Termination:
Swage
Flange Diameter:
0.250" (6.35mm)
Length - Overall:
0.515" (13.08mm)
Contact Finish Thickness:
-
REACH Status:
REACH Unaffected
Terminal Type:
Single End, Fork
Manufacturer:
Harwin Inc.
Mounting Hole Diameter:
0.155" ~ 0.159" (3.94mm ~ 4.04mm)
Staking Side OD:
0.152" ~ 0.154" (3.86mm ~ 3.92mm)
Staking Side ID:
0.109" ~ 0.112" (2.77mm ~ 2.85mm)
Diameter - Turret Head:
0.180" (4.57mm)
Contact Finish:
Tin
Length - Below Flange:
0.171" (4.34mm)
Insulation:
Non-Insulated
Board Thickness:
0.126" (3.20mm)
standardLeadTime:
6 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
Packaging:
Bulk
ECCN:
EAR99
Contact Material:
Brass Alloy
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is H2074Z01. It has 0.344" (8.74mm) length above the board. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product comprises triple turrets. The product features swage termination style. The flange diameter is 0.250" (6.35mm). The product has an integral 0.515" (13.08mm) overall length. In addition, it is reach unaffected. The terminal is a single end, fork type. The harwin inc.'s product offers user-desired applications. The given diameter of mounting hole is 0.155" ~ 0.159" (3.94mm ~ 4.04mm). It has 0.152" ~ 0.154" (3.86mm ~ 3.92mm) staking side OD. While 0.109" ~ 0.112" (2.77mm ~ 2.85mm) is the staking side ID. The turret's head is 0.180" (4.57mm) in diameter. Furthermore, the product is galvanized with excellent tin contact finishing. The product has a 0.171" (4.34mm) length below flange. Insulation Option: non-insulated. Moreover, 0.126" (3.20mm) is the given board thickness. It has a long 6 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. The product is made from sturdy brass alloy materials.
