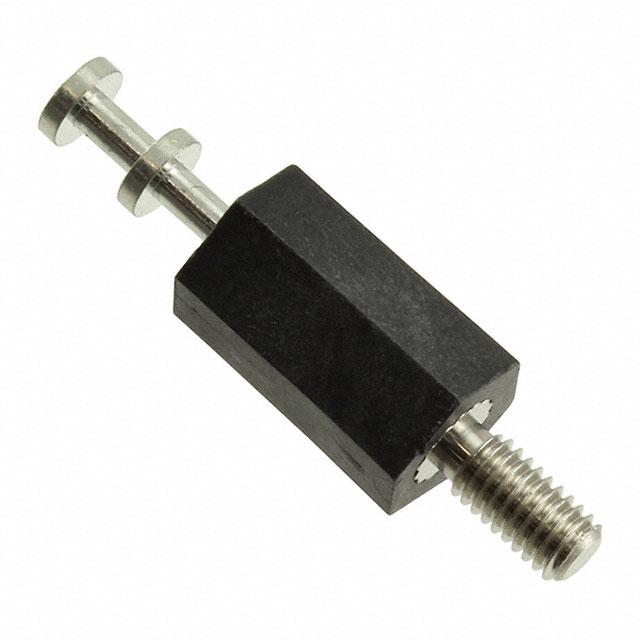

Harwin Inc. W2332-00

W2332-00 Harwin Inc.
Harwin Inc.

Product Information

Length - Above Board:
0.744" ~ 0.764" (18.90mm ~ 19.40mm)
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Number of Turrets:
Double
Termination:
Threaded
Flange Diameter:
-
Length - Overall:
0.988" ~ 1.015" (25.10mm ~ 25.78mm)
Contact Finish Thickness:
300.0µin (7.62µm)
REACH Status:
REACH Unaffected
Terminal Type:
Single End
Manufacturer:
Harwin Inc.
Mounting Hole Diameter:
-
Staking Side OD:
-
Staking Side ID:
-
Diameter - Turret Head:
0.136" ~ 0.140" (3.45mm ~ 3.56mm)
Contact Finish:
Tin
Length - Below Flange:
0.244" ~ 0.252" (6.20mm ~ 6.40mm)
Board Thickness:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Panel Mount
Series:
-
Packaging:
Bulk
Insulation:
Insulated
ECCN:
EAR99
Contact Material:
Brass
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is W2332-00. It has 0.744" ~ 0.764" (18.90mm ~ 19.40mm) length above the board. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. The product comprises double turrets. The product features threaded termination style. The product has an integral 0.988" ~ 1.015" (25.10mm ~ 25.78mm) overall length. It has 300.0µin (7.62µm) of contact finishing thickness. In addition, it is reach unaffected. The terminal is a single end type. The harwin inc.'s product offers user-desired applications. The turret's head is 0.136" ~ 0.140" (3.45mm ~ 3.56mm) in diameter. Furthermore, the product is galvanized with excellent tin contact finishing. The product has a 0.244" ~ 0.252" (6.20mm ~ 6.40mm) length below flange. Its typical moisture sensitivity level is not applicable. The product is available in panel mount configuration. In addition, bulk is the available packaging type of the product. Insulation Option: insulated. The product is designated with the ear99 code number. The product is made from sturdy brass materials.

pdf icon
Multiple Devices 26/Jul/2018(PCN Obsolescence/ EOL)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
RoHS Cert W2332-00(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search W2332-00 on website for other similar products.
We accept all major payment methods for all products including ET10951013. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with W2332-00 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Turret Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. W2332-00. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. W2332-00.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10951013 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET10951013.
Yes. We ship W2332-00 Internationally to many countries around the world.
