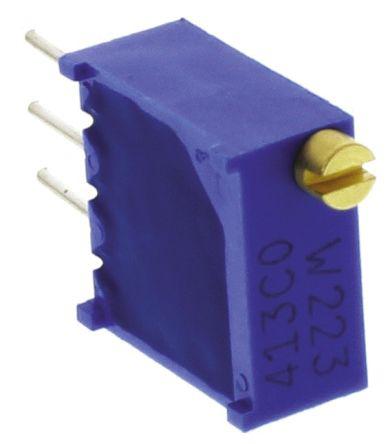

Bourns 3296W Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C

3296W-1-223LF Bourns 3296W Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C
3296W-1-223LF
3296W-1-223LF
Bourns

Product Information

Shaft Diameter:
2.19 mm
Orientation:
Top Adjust
Mounting Type:
Through Hole
Series:
3296
Termination Style:
Solder Pin
Number of Turns:
25
Temperature Coefficient:
±100ppm/°C
Length:
9.53mm
Minimum Operating Temperature:
-55°C
Power Rating:
0.5W
Maximum Resistance:
22kΩ
Tolerance:
±10%
Maximum Operating Temperature:
+125°C
RoHs Compliant
Checking for live stock

This is 3296W Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations 22kΩ ±10% 0.5W ±100ppm/°C manufactured by Bourns. The manufacturer part number is 3296W-1-223LF. The diameter of the shaft is 2.19 mm. The product has a top adjust orientation. The product is available in through hole configuration. The product 3296, is a highly preferred choice for users. Moreover, it has solder pin terminal style. Consist of 25 turns. It exhibits an excellent temperature coefficient of ±100ppm/°c. Its accurate length is 9.53mm. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.5w of power rating. The product offers a maximum resistance up to 22kω. It features ±10% of tolerance value. It has a maximum operating temperature of +125°c.

pdf icon
3296_Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 3296W-1-223LF on website for other similar products.
We accept all major payment methods for all products including ET16922680. Please check your shopping cart at the time of order.
You can order Bourns brand products with 3296W-1-223LF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Trimmer Resistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Bourns 3296W Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C. You can also check on our website or by contacting our customer support team for further order details on Bourns 3296W Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16922680 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16922680.
Yes. We ship 3296W-1-223LF Internationally to many countries around the world.
