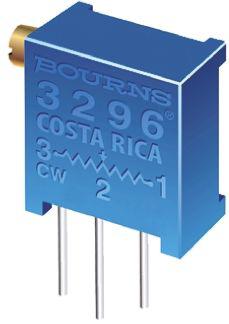

Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C

Enrgtech Part No: ET14100913
|
Manufacturer Part No:
3296Z-1-253LF
|
Manufacturer: Bourns

3296Z-1-253LF Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 22kΩ ±10% 0.5W ±100ppm/°C

Product Information

Shaft Diameter:

2.19 mm

Maximum Operating Temperature:

+125°C

Dimensions:

9.53 x 4.83 x 10.03mm

Mounting Type:

Through Hole

Series:

3296Z

Termination Style:

Solder Pin

Length:

9.53mm

Temperature Coefficient:

±100ppm/°C

Height:

10.03mm

Number of Turns:

Depth:

4.83mm

Minimum Operating Temperature:

-55°C

Checking for live stock

This is 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations 22kΩ ±10% 0.5W ±100ppm/°C manufactured by Bourns. The manufacturer part number is 3296Z-1-253LF. The diameter of the shaft is 2.19 mm. It has a maximum operating temperature of +125°c. The given dimensions of the product include 9.53 x 4.83 x 10.03mm. The product is available in through hole configuration. The product 3296z, is a highly preferred choice for users. Moreover, it has solder pin terminal style. Its accurate length is 9.53mm. It exhibits an excellent temperature coefficient of ±100ppm/°c. In addition, the height is 10.03mm. Consist of 25 turns. The product comes in 4.83mm depth. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.5w of power rating. The product offers a maximum resistance up to 22 kω. It features ±10% of tolerance value. The product has a side adjust orientation.
