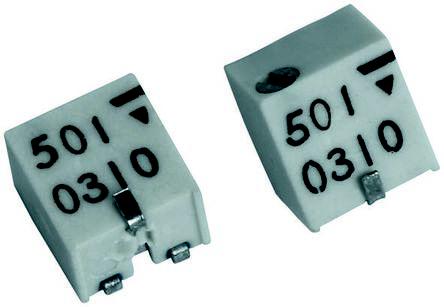

Vishay TSM4 YJ Series 11-Turn SMD Trimmer Resistor with J-Hook Terminations, 1MΩ ±10% 0.25W ±100ppm/°C Side Adjust

Enrgtech Part No: ET14080717
|
Manufacturer Part No:
TSM4YJ105KB25
|
Manufacturer: Vishay

TSM4YJ105KB25 Vishay TSM4 YJ Series 11-Turn SMD Trimmer Resistor with J-Hook Terminations, 1MΩ ±10% 0.25W ±100ppm/°C Side Adjust

Product Information

Dimensions:

4.8 x 3.5 x 5.1mm

Mounting Type:

Surface Mount

Series:

TSM4 YJ

Termination Style:

J-Hook

Length:

4.8mm

Temperature Coefficient:

±100ppm/°C

Height:

5.1mm

Number of Turns:

Depth:

3.5mm

Minimum Operating Temperature:

-55°C

Power Rating:

0.25W

Maximum Resistance:

1 MΩ

Checking for live stock

This is TSM4 YJ Series 11-Turn SMD Trimmer Resistor with J-Hook Terminations 1MΩ ±10% 0.25W ±100ppm/°C Side Adjust manufactured by Vishay. The manufacturer part number is TSM4YJ105KB25. The given dimensions of the product include 4.8 x 3.5 x 5.1mm. The product is available in surface mount configuration. The product tsm4 yj, is a highly preferred choice for users. Moreover, it has j-hook terminal style. Its accurate length is 4.8mm. It exhibits an excellent temperature coefficient of ±100ppm/°c. In addition, the height is 5.1mm. Consist of 11 turns. The product comes in 3.5mm depth. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.25w of power rating. The product offers a maximum resistance up to 1 mω. It features ±10% of tolerance value. It has a maximum operating temperature of +125°c. The product has a side adjust orientation.

Datasheet(Technical Reference)

Product Change Notification SFERNICE /Oct 20, 2006/PCN-SF / FL 046- 2005 Rev 0(Technical Reference)
