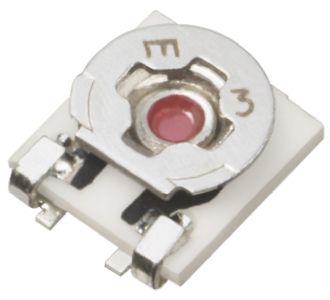

Panasonic EVM2N Series SMD Trimmer Resistor with Solder Pad Terminations, 1MΩ ±25% 0.15W ±250ppm/°C Top Adjust

EVM2NSX80B16 Panasonic EVM2N Series SMD Trimmer Resistor with Solder Pad Terminations, 1MΩ ±25% 0.15W ±250ppm/°C Top Adjust
Panasonic

Product Information

Maximum Operating Temperature:
+100°C
Dimensions:
2.2 x 2.81 x 0.81mm
Mounting Type:
Surface Mount
Series:
EVM2N
Termination Style:
Solder Pad
Length:
2.2mm
Temperature Coefficient:
±250ppm/°C
Height:
0.81mm
Number of Turns:
1
Depth:
2.81mm
Minimum Operating Temperature:
-40°C
Power Rating:
0.15W
Maximum Resistance:
1 MΩ
Tolerance:
±25%
Orientation:
Top Adjust
RoHs Compliant
Checking for live stock

This is EVM2N Series SMD Trimmer Resistor with Solder Pad Terminations 1MΩ ±25% 0.15W ±250ppm/°C Top Adjust manufactured by Panasonic. The manufacturer part number is EVM2NSX80B16. It has a maximum operating temperature of +100°c. The given dimensions of the product include 2.2 x 2.81 x 0.81mm. The product is available in surface mount configuration. The product evm2n, is a highly preferred choice for users. Moreover, it has solder pad terminal style. Its accurate length is 2.2mm. It exhibits an excellent temperature coefficient of ±250ppm/°c. In addition, the height is 0.81mm. Consist of 1 turns. The product comes in 2.81mm depth. Whereas, the minimum operating temperature of the product is -40°c. Feature 0.15w of power rating. The product offers a maximum resistance up to 1 mω. It features ±25% of tolerance value. The product has a top adjust orientation.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVM2NSX80B16 on website for other similar products.
We accept all major payment methods for all products including ET14054006. Please check your shopping cart at the time of order.
You can order Panasonic brand products with EVM2NSX80B16 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Trimmer Resistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic EVM2N Series SMD Trimmer Resistor with Solder Pad Terminations, 1MΩ ±25% 0.15W ±250ppm/°C Top Adjust. You can also check on our website or by contacting our customer support team for further order details on Panasonic EVM2N Series SMD Trimmer Resistor with Solder Pad Terminations, 1MΩ ±25% 0.15W ±250ppm/°C Top Adjust.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054006 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054006.
Yes. We ship EVM2NSX80B16 Internationally to many countries around the world.
