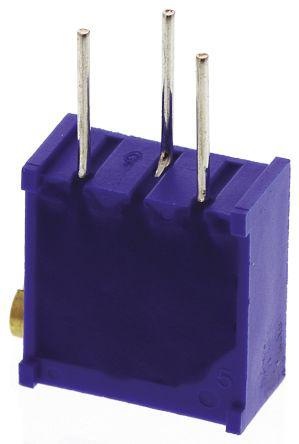

Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 5MΩ ±10% 0.5W ±100ppm/°C

Enrgtech Part No: ET13826933
|
Manufacturer Part No:
3296Z-1-505LF
|
Manufacturer: Bourns

3296Z-1-505LF Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 5MΩ ±10% 0.5W ±100ppm/°C

Product Information

Shaft Diameter:

2.19 mm

Orientation:

Side Adjust

Mounting Type:

Through Hole

Series:

3296

Termination Style:

Solder Pin

Number of Turns:

Temperature Coefficient:

±100ppm/°C

Length:

9.53mm

Minimum Operating Temperature:

-55°C

Power Rating:

0.5W

Maximum Resistance:

5MΩ

Tolerance:

±10%

Checking for live stock

This is 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations 5MΩ ±10% 0.5W ±100ppm/°C manufactured by Bourns. The manufacturer part number is 3296Z-1-505LF. The diameter of the shaft is 2.19 mm. The product has a side adjust orientation. The product is available in through hole configuration. The product 3296, is a highly preferred choice for users. Moreover, it has solder pin terminal style. Consist of 25 turns. It exhibits an excellent temperature coefficient of ±100ppm/°c. Its accurate length is 9.53mm. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.5w of power rating. The product offers a maximum resistance up to 5mω. It features ±10% of tolerance value. It has a maximum operating temperature of +125°c.

3296_Datasheet(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 3296Z-1-505LF on website for other similar products.

We accept all major payment methods for all products including ET13826933. Please check your shopping cart at the time of order.

You can order Bourns brand products with 3296Z-1-505LF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Trimmer Resistors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 5MΩ ±10% 0.5W ±100ppm/°C. You can also check on our website or by contacting our customer support team for further order details on Bourns 3296Z Series 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 5MΩ ±10% 0.5W ±100ppm/°C.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13826933 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13826933.

Yes. We ship 3296Z-1-505LF Internationally to many countries around the world.
