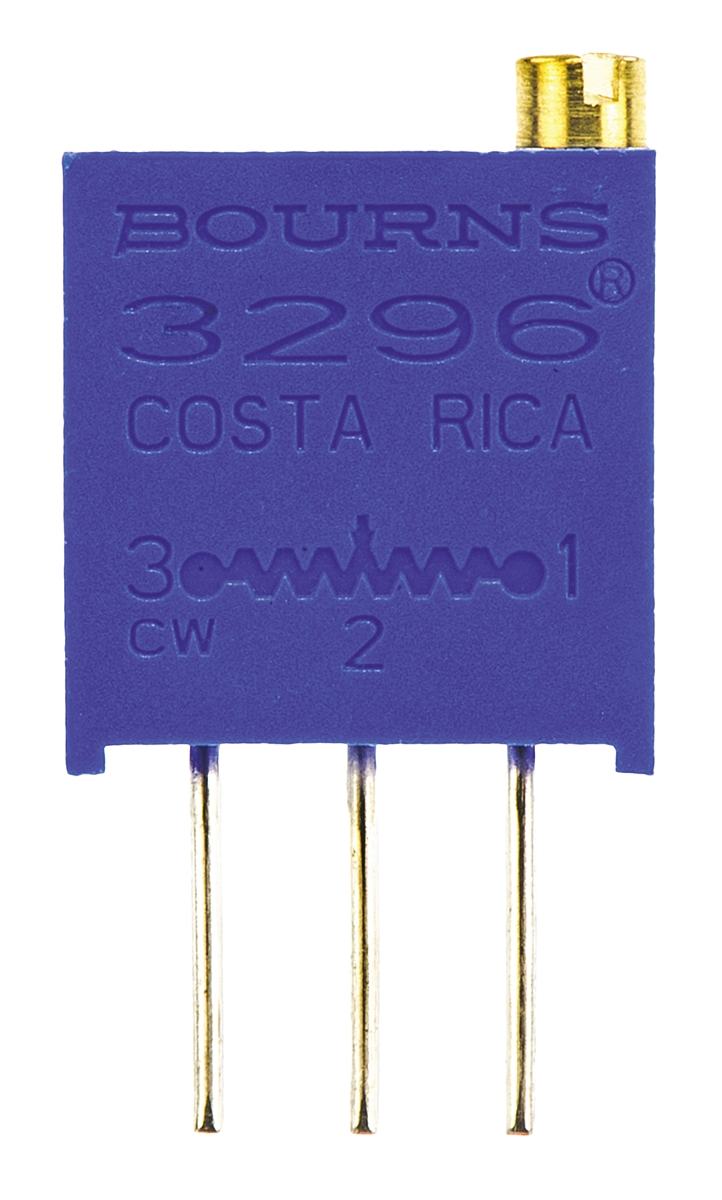

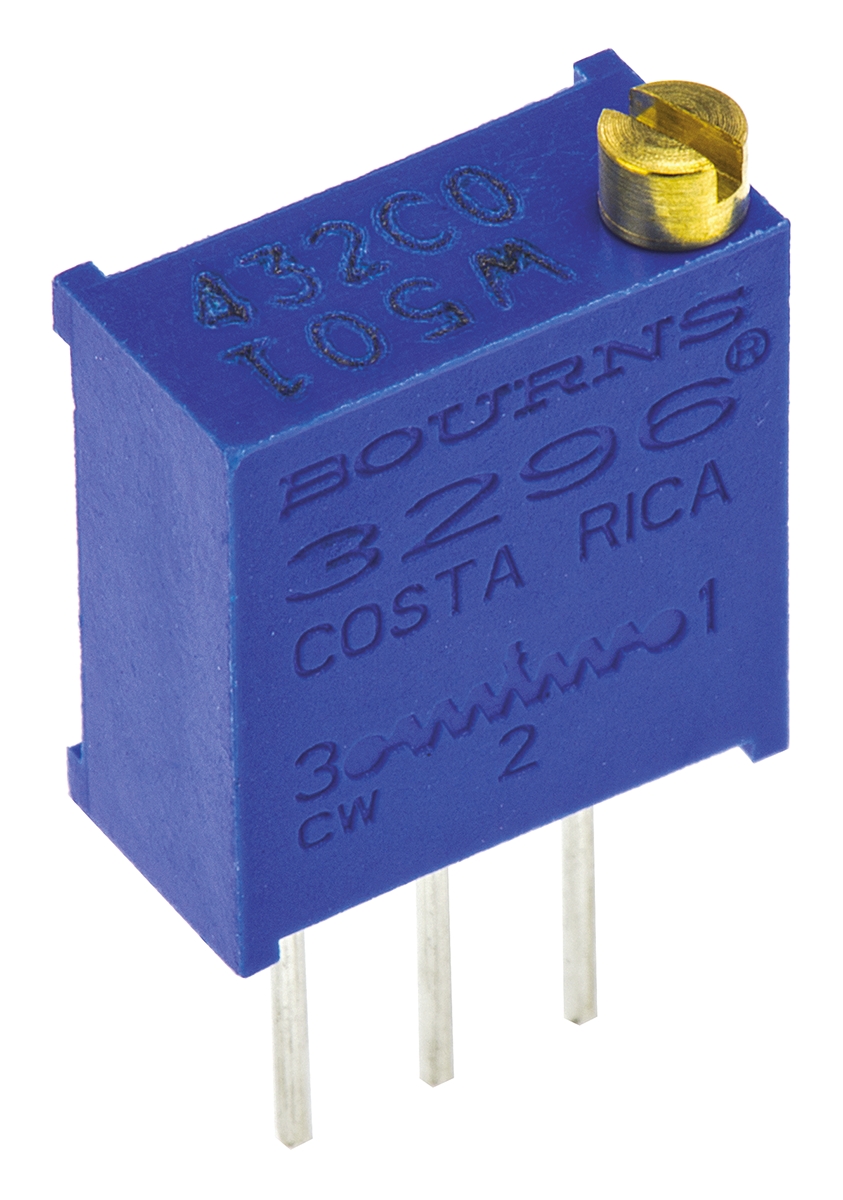

Bourns 3296W-1-501LF, 25-Turn Through Hole Trimmer Resistor with Pin Terminations, 500Ω ±10% 1/2W ±100ppm/°C

3296W-1-501LF Bourns , 25-Turn Through Hole Trimmer Resistor with Pin Terminations, 500Ω ±10% 1/2W ±100ppm/°C
3296W-1-501LF
3296W-1-501LF
Bourns

Product Information

Shaft Diameter:
2.19 mm
Orientation:
Top Adjust
Mounting Type:
Through Hole
Series:
3296
Minimum Operating Temperature:
-55°C
Termination Style:
Pin
Number of Turns:
25
Temperature Coefficient:
±100ppm/°C
Length:
9.53mm
Power Rating:
0.5W
Maximum Resistance:
500Ω
Tolerance:
±10%
Maximum Operating Temperature:
+125°C
RoHs Compliant
Checking for live stock

Experience the precision and reliability of the Bourns 3296W-1-501LF, a 25-turn through-hole trimmer resistor that stands out in the market for its fine adjustability and stable performance. Ideal for UK-based electronics enthusiasts and professionals, this resistor offers a resistance of 500Ω with a tolerance of ±10% and a power rating of 1/2W, ensuring robust performance across various applications. Enhanced with ±100ppm/°C temperature coefficient, it guarantees high reliability even under fluctuating thermal conditions.

Salient Features and Benefits of Choosing the Bourns 3296W-1-501LF, Through Hole Trimmer Resistor with Pin Terminations

  • Provides precise control over resistance settings.
  • Ensures easy installation and stable mechanical fit on printed circuit boards.
  • Facilitates secure and reliable electrical connections.
  • Reduces variability and enhances device accuracy in sensitive applications.
  • Constructed to withstand industrial applications and rigorous usage.

Versatility in Applications

  • Ideal for teaching electronics principles and circuit design.
  • Used in tuning network devices and signal filters.
  • Ensures precision in control systems and automated manufacturing equipment.

Why Should You Buy the Bourns 3296W-1-501LF, Trimmer Resistor?

This trimmer resistor is designed for scenarios where precise resistance adjustments are crucial. It is perfect for fine-tuning and calibration in circuit designs, making it an indispensable tool for engineers and technicians who require exacting standards in their work.

pdf icon
3296_Datasheet(Technical Reference)
