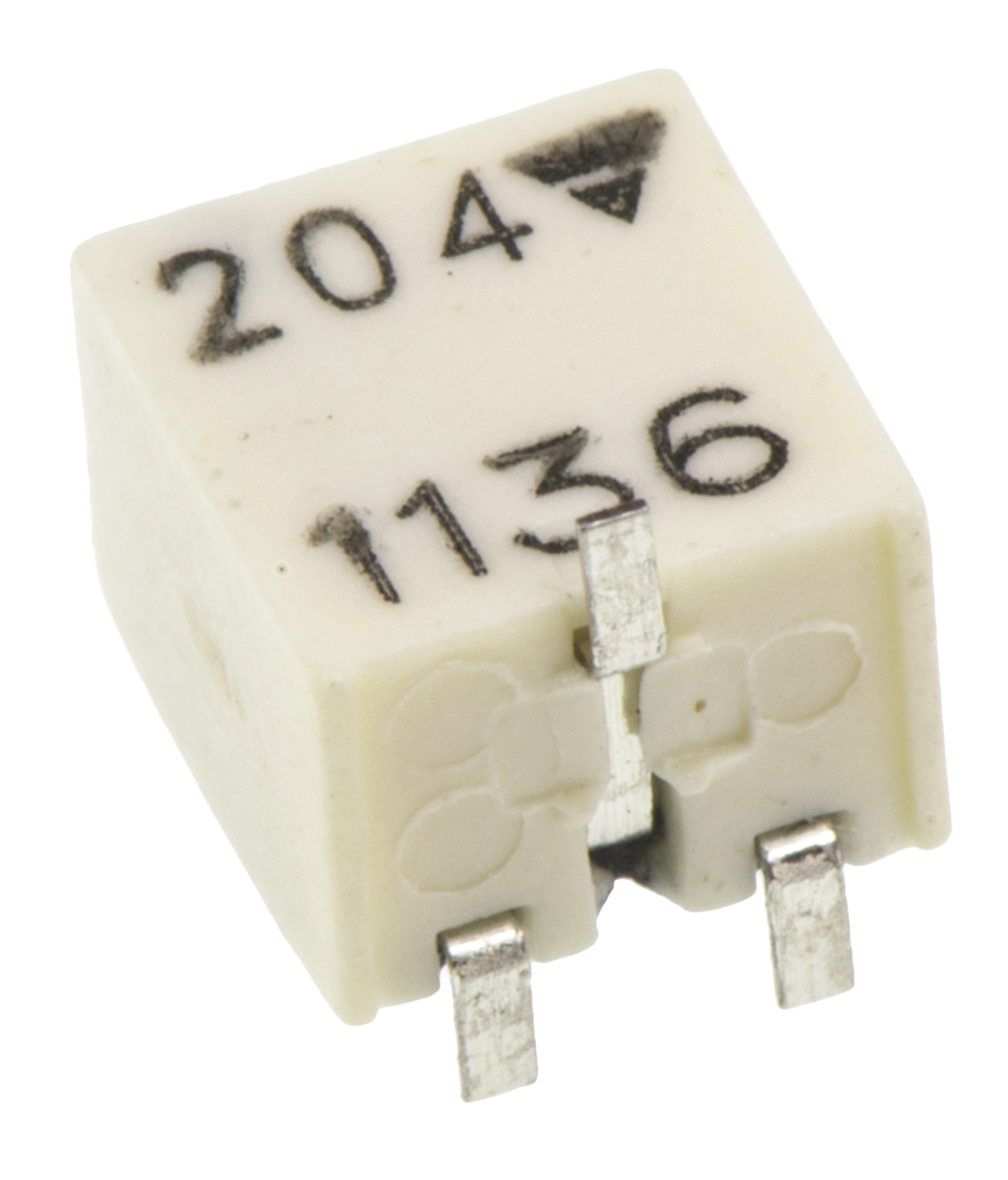

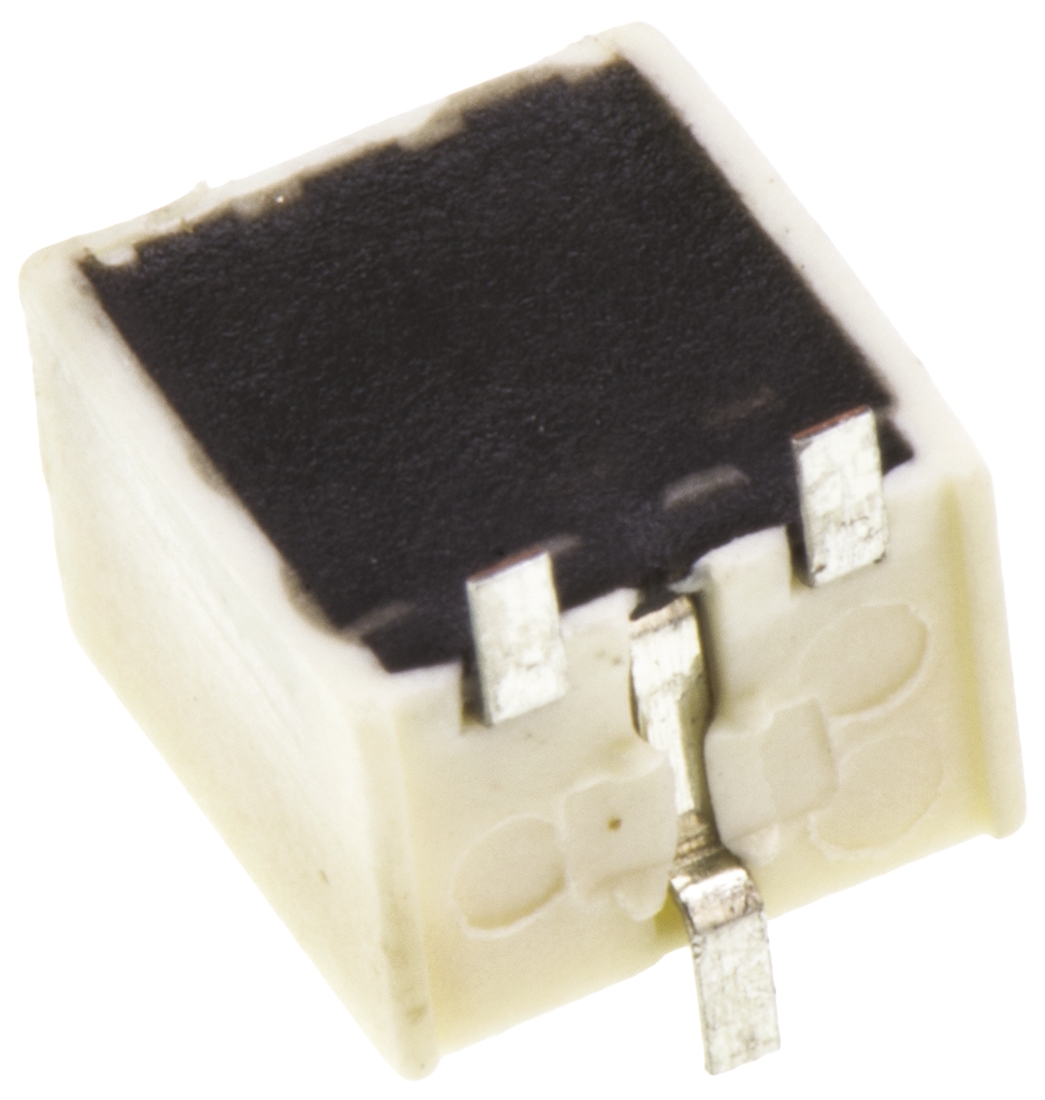

Vishay TSM4 YJ Series 11 (Electrical), 13 (Mechanical)-Turn SMD Trimmer Resistor with Gull Wing Terminations, 200kΩ

TSM4YL204KB25 Vishay TSM4 YJ Series 11 (Electrical), 13 (Mechanical)-Turn SMD Trimmer Resistor with Gull Wing Terminations, 200kΩ
TSM4YL204KB25
Vishay

Product Information

Shaft Diameter:
1.5 mm
Orientation:
Top Adjust
Mounting Type:
Surface Mount
Series:
TSM4
Termination Style:
Gull Wing
Number of Turns:
11
Temperature Coefficient:
±100ppm/°C
Length:
4.8mm
Minimum Operating Temperature:
-55°C
Power Rating:
0.2W
Maximum Resistance:
200kΩ
Tolerance:
±10%
Maximum Operating Temperature:
+125°C
RoHs Compliant
Checking for live stock

This is TSM4 YJ Series 11 (Electrical) 13 (Mechanical)-Turn SMD Trimmer Resistor with Gull Wing Terminations 200kΩ manufactured by Vishay. The manufacturer part number is TSM4YL204KB25. The diameter of the shaft is 1.5 mm. The product has a top adjust orientation. The product is available in surface mount configuration. The product tsm4, is a highly preferred choice for users. Moreover, it has gull wing terminal style. Consist of 11 turns. It exhibits an excellent temperature coefficient of ±100ppm/°c. Its accurate length is 4.8mm. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.2w of power rating. The product offers a maximum resistance up to 200kω. It features ±10% of tolerance value. It has a maximum operating temperature of +125°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Product Change Notification SFERNICE /Oct 20, 2006/PCN-SF / FL 046- 2005 Rev 0(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TSM4YL204KB25 on website for other similar products.
We accept all major payment methods for all products including ET13905271. Please check your shopping cart at the time of order.
You can order Vishay brand products with TSM4YL204KB25 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Trimmer Potentiometers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay TSM4 YJ Series 11 (Electrical), 13 (Mechanical)-Turn SMD Trimmer Resistor with Gull Wing Terminations, 200kΩ. You can also check on our website or by contacting our customer support team for further order details on Vishay TSM4 YJ Series 11 (Electrical), 13 (Mechanical)-Turn SMD Trimmer Resistor with Gull Wing Terminations, 200kΩ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13905271 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13905271.
Yes. We ship TSM4YL204KB25 Internationally to many countries around the world.
