Triac,3Q,800V,16A,logic,TO220AB

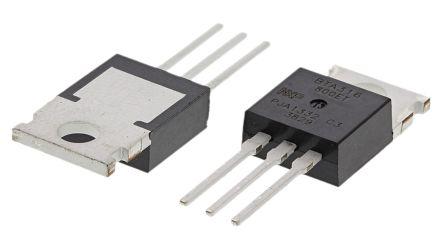

BTA316-800ET Triac,3Q,800V,16A,logic,TO220AB
BTA316-800ET
WeEn Semiconductors Co., Ltd

Product Information

Repetitive Peak Forward Blocking Voltage:
800V
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.5V
Dimensions:
10.3 x 4.7 x 16mm
Mounting Type:
Through Hole
Surge Current Rating:
140A
Rated Average On-State Current:
16A
Height:
16 (With Tab)mm
Width:
4.7mm
Length:
10.3mm
Repetitive Peak Off-State Current:
2mA
Package Type:
TO-220AB
Maximum Holding Current:
15mA
Maximum Gate Trigger Current:
10mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.5V
RoHs Compliant
Checking for live stock

This is Triac3Q800V16AlogicTO220AB manufactured by WeEn Semiconductors Co., Ltd. The manufacturer part number is BTA316-800ET. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.5v . The given dimensions of the product include 10.3 x 4.7 x 16mm. The product is available in through hole configuration. It has about 140a surge current rating . Moreover, it has about 16a rated average on-state current . In addition, the height is 16 (with tab)mm. Furthermore, the product is 4.7mm wide. Its accurate length is 10.3mm. Its repetitive peak off-state current is approximately 2ma . The package is a sort of to-220ab. The product has a maximum 15ma holding current . In addition, the product has a maximum 10ma gate trigger current . It has a maximum operating temperature of +150 °c. It contains 3 pins. Moreover, it has a maximum 1.5v gate trigger voltage .

pdf icon
BTA316-800ET, 3Q Hi-Com Triac Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
