Repetitive Peak Forward Blocking Voltage:
800V
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.55V
Dimensions:
40 x 27 x 14mm
Mounting Type:
Panel Mount
Surge Current Rating:
420A
Rated Average On-State Current:
40A
Height:
14mm
Width:
27mm
Length:
40mm
Repetitive Peak Off-State Current:
0.005mA
Package Type:
RD-91
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
80mA
Maximum Gate Trigger Current:
100mA
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.3V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Gate Trigger (Vgt) (Max):
1.3 V
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
RD91-3 (Insulated)
Current - Hold (Ih) (Max):
80 mA
title:

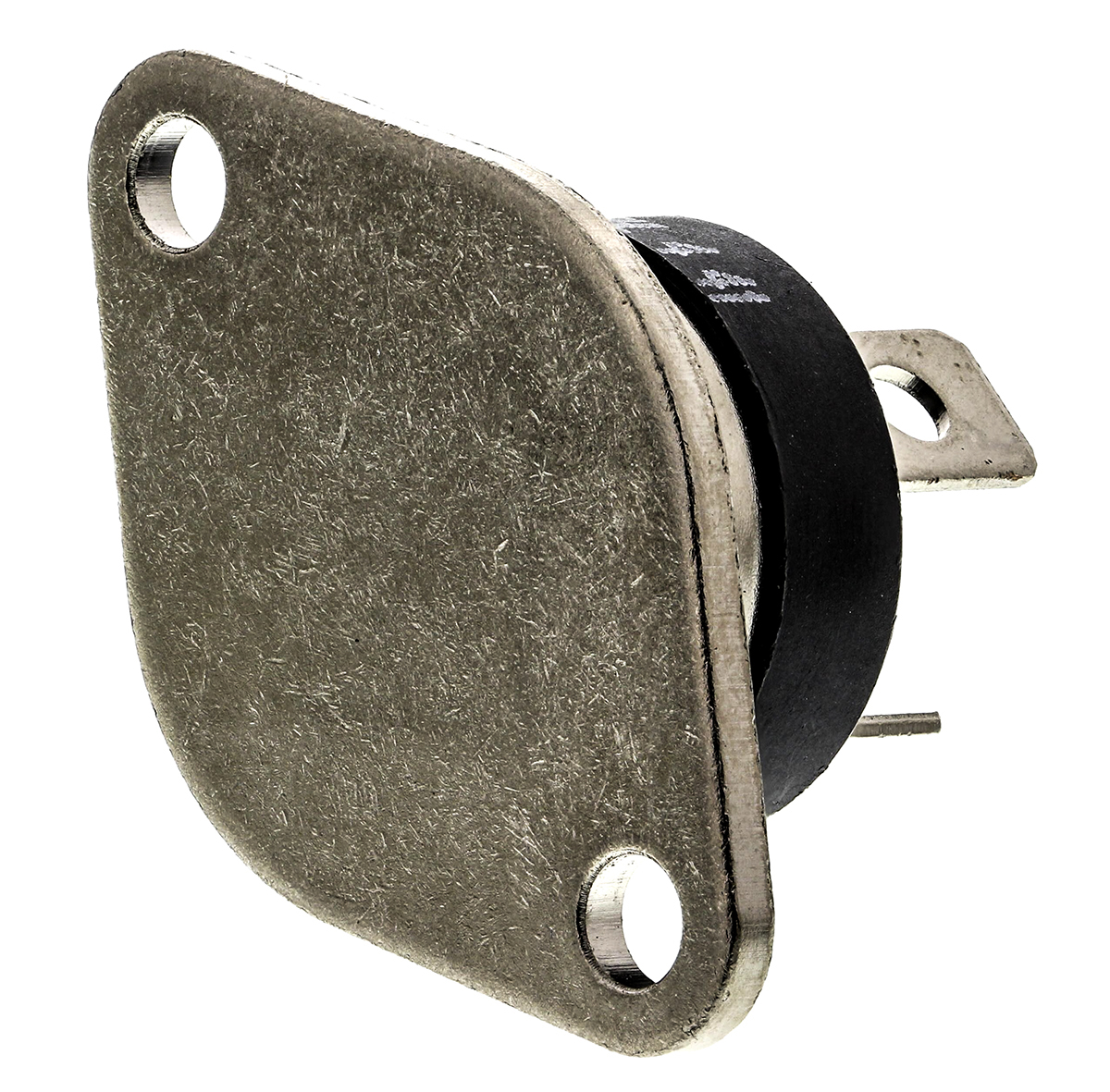

BTA40-800B
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
40 A
edacadModel:
BTA40-800B Models
Voltage - Off State:
800 V
edacadModelUrl:
/en/models/603430
Configuration:
Single
Manufacturer:
STMicroelectronics
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
50 mA
standardLeadTime:
99 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
400A, 420A
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
RD91
Packaging:
Tube

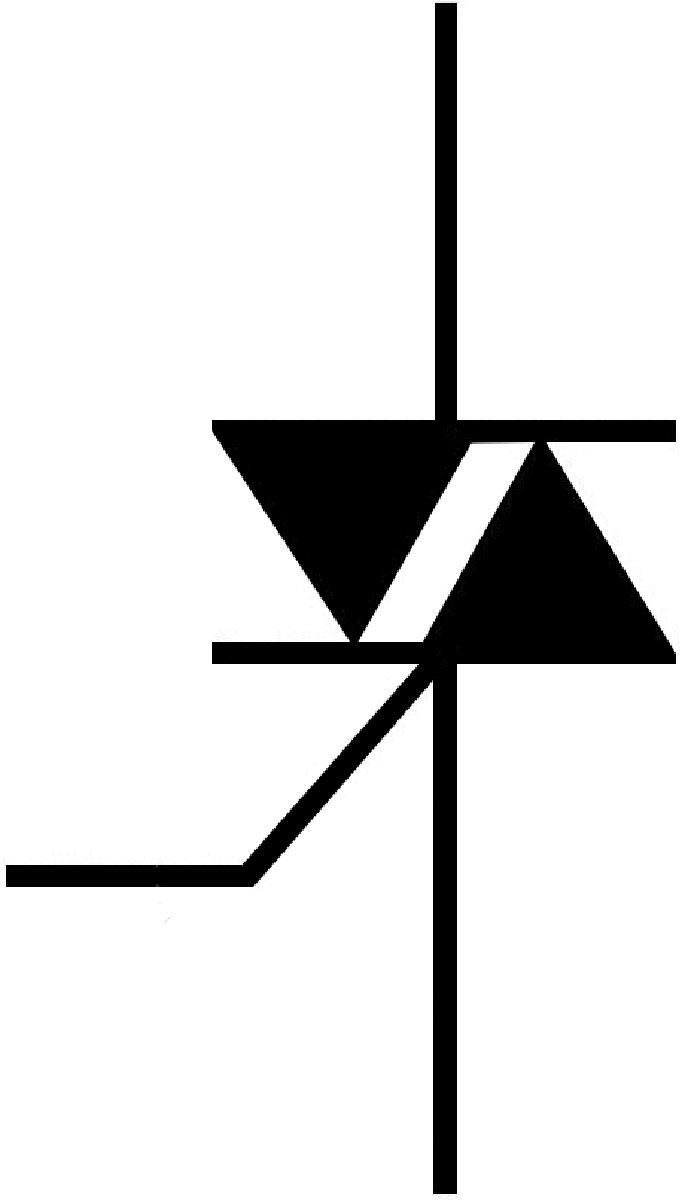

Triac Type:
Standard
Base Product Number:
BTA40
ECCN:
EAR99
