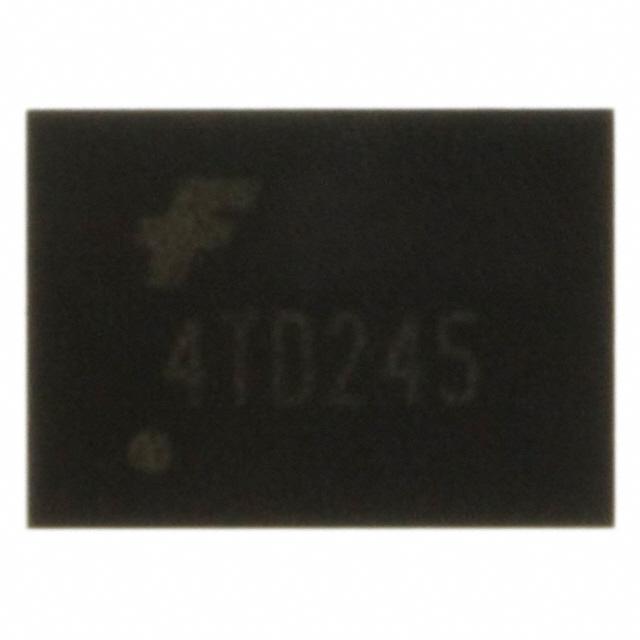

onsemi FXL4TD245BQX

FXL4TD245BQX onsemi
onsemi

Product Information

Dimensions:
3.5 x 2.5 x 0.75mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
1.1 V
Height:
0.75mm
Width:
2.5mm
Length:
3.5mm
Package Type:
DQFN
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
16-WFQFN Exposed Pad
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Tri-State, Non-Inverted
edacadModel:
FXL4TD245BQX Models
Output Signal:
-
Data Rate:
-
edacadModelUrl:
/en/models/1566828
Manufacturer:
onsemi
Channel Type:
Bidirectional
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
1.1 V ~ 3.6 V
Voltage - VCCA:
1.1 V ~ 3.6 V
standardLeadTime:
14 Weeks
Number of Circuits:
1
Channels per Circuit:
4
Features:
Power-Off Protection
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
16-DQFN (2.5x3.5)
Packaging:
Tape & Reel (TR)
Base Product Number:
FXL4TD245
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is FXL4TD245BQX. The given dimensions of the product include 3.5 x 2.5 x 0.75mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 1.1 v. In addition, the height is 0.75mm. Furthermore, the product is 2.5mm wide. Its accurate length is 3.5mm. The package is a sort of dqfn. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 16 pins. The translator is a voltage level type. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 16-wfqfn exposed pad. In addition, it is reach unaffected. Furthermore, it has atri-state, non-inverted output. The onsemi's product offers user-desired applications. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 1 (unlimited). While the VCCB voltage range is 1.1 v ~ 3.6 v. Provides up to 1.1 v ~ 3.6 v voltage. It has a long 14 weeks standard lead time. It integrates 1 circuits. It includes 4 channels per circuit. The splendid features of the product include power-off protection. 16-dqfn (2.5x3.5) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to fxl4td245, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet FXL4TD245BQX(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
Assembly Change 30/Jun/2023(PCN Assembly/Origin)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
FXL4TD245(Datasheets)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
