Diodes Incorporated PI4ULS5V102GAEX

PI4ULS5V102GAEX Diodes Incorporated
Diodes Incorporated

Product Information

Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)

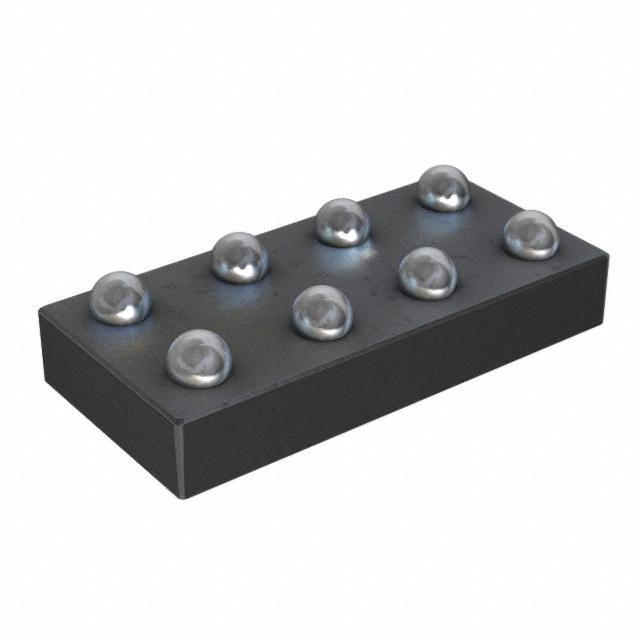

Package / Case:
8-UFBGA, CSPBGA
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Tri-State, Non-Inverted
Output Signal:
-
Data Rate:
100Mbps
Manufacturer:
Diodes Incorporated
Channel Type:
Bidirectional
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
1.65 V ~ 5.5 V
Voltage - VCCA:
1.2 V ~ 3.6 V
Number of Circuits:
1
Channels per Circuit:
2
Features:
Auto-Direction Sensing
Mounting Type:
Surface Mount
Series:
ULS
Supplier Device Package:
8-CSP (1.95x0.95)
Packaging:
Tape & Reel (TR)
Base Product Number:
PI4ULS5V102
ECCN:
EAR99
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is PI4ULS5V102GAEX. The translator is a voltage level type. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 8-ufbga, cspbga. In addition, it is reach unaffected. Furthermore, it has atri-state, non-inverted output. It has a maximised data speed rate of 100mbps. The diodes incorporated's product offers user-desired applications. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 1 (unlimited). While the VCCB voltage range is 1.65 v ~ 5.5 v. Provides up to 1.2 v ~ 3.6 v voltage. It integrates 1 circuits. It includes 2 channels per circuit. The splendid features of the product include auto-direction sensing. The product is available in surface mount configuration. The product uls, is a highly preferred choice for users. 8-csp (1.95x0.95) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to pi4uls5v102, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev EOL REV 28/Jun/2019(PCN Obsolescence/ EOL)
pdf icon
Mult Dev EOL 28/Jun/2019(PCN Obsolescence/ EOL)
pdf icon
PI4ULS5V102(Datasheets)
pdf icon
Diodes Environmental Compliance Cert(Environmental Information)
pdf icon
Labeling Change 30/Sep/2016(PCN Packaging)
pdf icon
Labeling Change Revision 12/Apr/2017(PCN Packaging)
