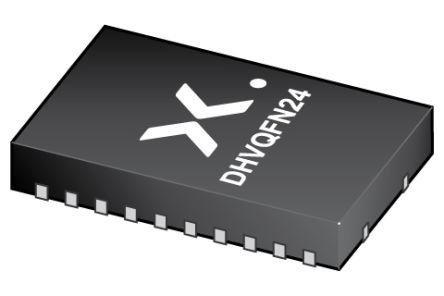

Nexperia 74AVC8T245BQ-Q100J, Voltage Level Shifter, 24-Pin DHVQFN

74AVC8T245BQ-Q100J Nexperia , Voltage Level Shifter, 24-Pin DHVQFN
Nexperia

Product Information

Maximum Low Level Output Current:
1.5mA
Dimensions:
4.25 x 3.6 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
14.4 ns @ 15 pF
Minimum Operating Supply Voltage:
0.8 V
Logic Function:
Level Translator
Propagation Delay Test Condition:
15pF
Output Type:
3 State
Automotive Standard:
AEC-Q100
Maximum High Level Output Current:
-1.5mA
Package Type:
DHVQFN
Logic Family:
74AVC
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Translation:
Bi-Directional
Maximum Operating Temperature:
+125 °C
Pin Count:
24
Number of Elements per Chip:
16
RoHs Compliant
Checking for live stock

This is Voltage Level Shifter 24-Pin DHVQFN manufactured by Nexperia. The manufacturer part number is 74AVC8T245BQ-Q100J. On the other hand, it is featured with 1.5ma of max. low level output current. The given dimensions of the product include 4.25 x 3.6 x 0.95mm. The product is available in surface mount configuration. It provides up to 14.4 ns @ 15 pf maximum propagation delay time. While its minimum operating supply voltage is 0.8 v. The primary function of logic includes level translator. Features 15pf of propagation delay test condition. Furthermore, it has a3 state output. The product complies with automotive standard - aec-q100. While a -1.5ma of maximum high level output current. The package is a sort of dhvqfn. The logic family is 74avc. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a/an bi-directional translation . It has a maximum operating temperature of +125 °c. It contains 24 pins. It consists of 16 elements per chip.
