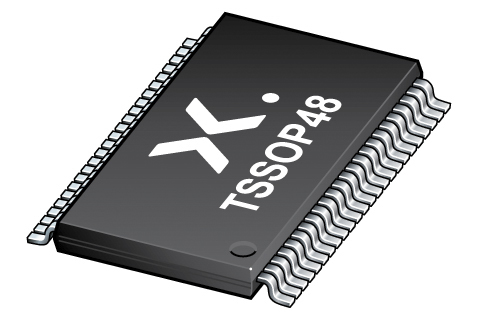

Nexperia 74ALVC164245DGG,11, Voltage Level Shifter, 48-Pin TSSOP

74ALVC164245DGG-11 Nexperia 74ALVC164245DGG,11, Voltage Level Shifter, 48-Pin TSSOP
Nexperia

Product Information

Maximum Low Level Output Current:
24mA
Dimensions:
12.6 x 6.2 x 1.05mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
9.5 ns @ 50 pF
Minimum Operating Supply Voltage:
2.7 V
Logic Function:
Level Translator
Propagation Delay Test Condition:
50pF
Output Type:
3 State
Maximum High Level Output Current:
-24mA
Package Type:
TSSOP
Logic Family:
74ALV
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Translation:
Bi-Directional
Maximum Operating Temperature:
+125 °C
Pin Count:
48
Number of Elements per Chip:
5
RoHs Compliant
Checking for live stock

This is Voltage Level Shifter 48-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74ALVC164245DGG,11. On the other hand, it is featured with 24ma of max. low level output current. The given dimensions of the product include 12.6 x 6.2 x 1.05mm. The product is available in surface mount configuration. It provides up to 9.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2.7 v. The primary function of logic includes level translator. Features 50pf of propagation delay test condition. Furthermore, it has a3 state output. While a -24ma of maximum high level output current. The package is a sort of tssop. The logic family is 74alv. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a/an bi-directional translation . It has a maximum operating temperature of +125 °c. It contains 48 pins. It consists of 5 elements per chip.
