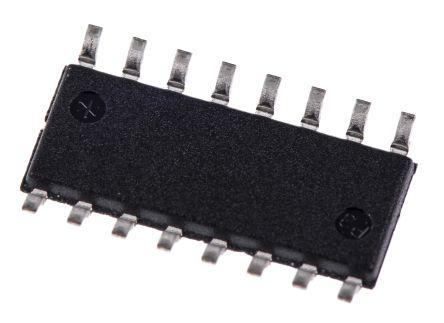

ON Semiconductor MC14504BDG, Logic Level Translator, Voltage Level Shifter, CMOS, TTL to CMOS, 3 → 18 V, 16-Pin

Enrgtech Part No: ET16727371
|
Manufacturer Part No:
MC14504BDG
|
Manufacturer: ON Semiconductor

MC14504BDG ON Semiconductor , Logic Level Translator, Voltage Level Shifter, CMOS, TTL to CMOS, 3 → 18 V, 16-Pin

Product Information

Maximum Low Level Output Current:

4.2mA

Dimensions:

10 x 4 x 1.5mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

550 ns @ 15 V

Minimum Operating Supply Voltage:

3 V

Logic Function:

Voltage Level Shifter

Logic Family:

4000

Package Type:

SOIC

Minimum Operating Temperature:

-55 °C

Maximum Operating Supply Voltage:

18 V

Translation:

CMOS, TTL to CMOS

Maximum Operating Temperature:

+125 °C

Checking for live stock

This is Logic Level Translator Voltage Level Shifter CMOS TTL to CMOS 3 → 18 V 16-Pin manufactured by ON Semiconductor. The manufacturer part number is MC14504BDG. On the other hand, it is featured with 4.2ma of max. low level output current. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. It provides up to 550 ns @ 15 v maximum propagation delay time. While its minimum operating supply voltage is 3 v. The primary function of logic includes voltage level shifter. The logic family is 4000. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -55 °c. It has 18 v maximum operating supply voltage. It has a/an cmos, ttl to cmos translation . It has a maximum operating temperature of +125 °c. It contains 16 pins. While a -4.2ma of maximum high level output current.
