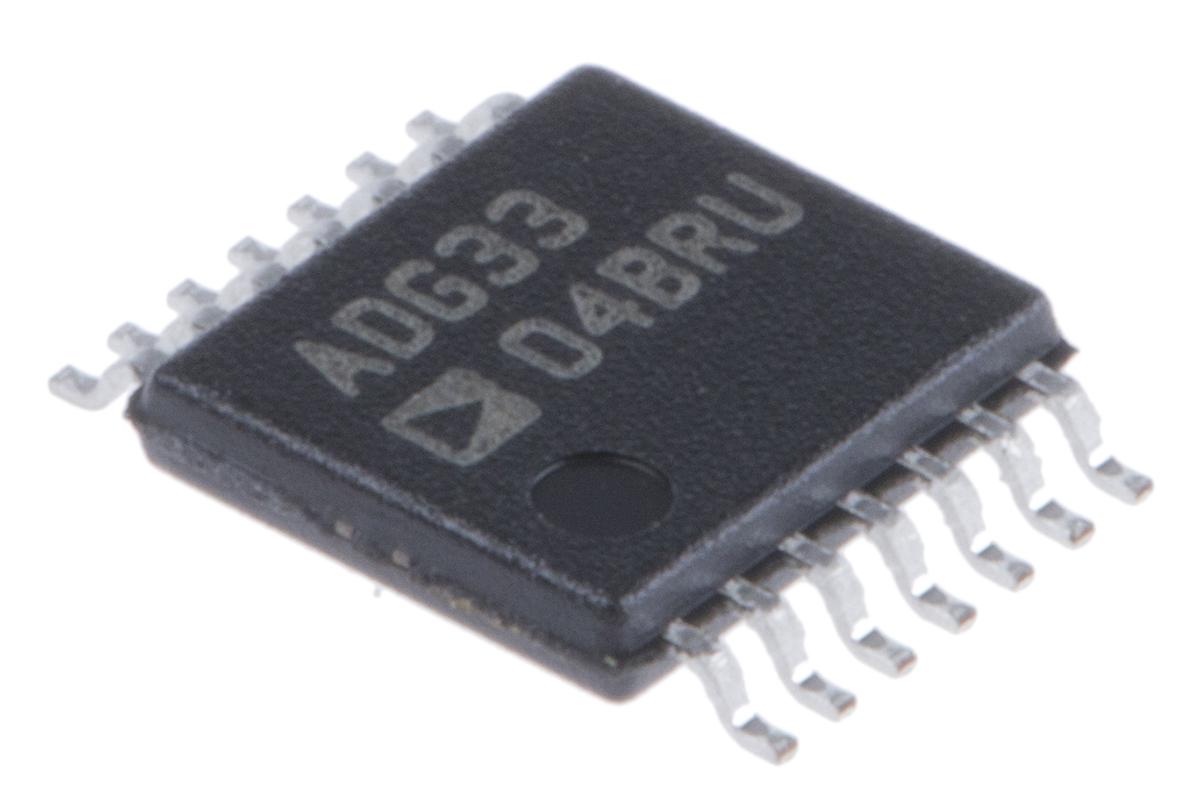

Analog Devices ADG3304BRUZ, Logic Level Translator, 3-State, 1.15 → 5.5 V, 14-Pin TSSOP

Enrgtech Part No: ET14003721
|
Manufacturer Part No:
ADG3304BRUZ
|
Manufacturer: Analog Devices

ADG3304BRUZ Analog Devices , Logic Level Translator, 3-State, 1.15 → 5.5 V, 14-Pin TSSOP

Product Information

Maximum Low Level Output Current:

0.02mA

Dimensions:

5 x 4.4 x 1mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

25 ns @ 1.8 V

Minimum Operating Supply Voltage:

1.15 V

Logic Function:

Level Translator

Output Type:

3 State

Package Type:

TSSOP

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

5.5 V

Maximum Operating Temperature:

+85 °C

Pin Count:

Checking for live stock

This is Logic Level Translator 3-State 1.15 → 5.5 V 14-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is ADG3304BRUZ. On the other hand, it is featured with 0.02ma of max. low level output current. The given dimensions of the product include 5 x 4.4 x 1mm. The product is available in surface mount configuration. It provides up to 25 ns @ 1.8 v maximum propagation delay time. While its minimum operating supply voltage is 1.15 v. The primary function of logic includes level translator. Furthermore, it has a3 state output. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 14 pins. While a -0.02ma of maximum high level output current.

ESD Control Selection Guide V1(Technical Reference)

ADG3304 Series Datasheet(Technical Reference)
