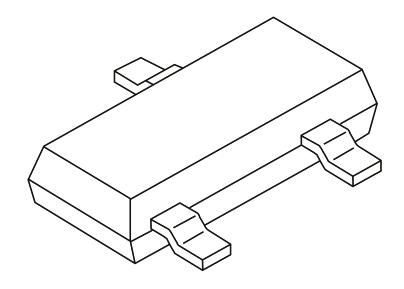

Analog Devices ADG3231BRJZ-REEL7, Logic Level Translator, LVTTL to CMOS, 1.65 → 3.6 V, 6-Pin SOT-23

Enrgtech Part No: ET13827250
|
Manufacturer Part No:
ADG3231BRJZ-REEL7
|
Manufacturer: Analog Devices

ADG3231BRJZ-REEL7 Analog Devices , Logic Level Translator, LVTTL to CMOS, 1.65 → 3.6 V, 6-Pin SOT-23

Product Information

Maximum Low Level Output Current:

8mA

Dimensions:

3 x 1.7 x 1.3mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

10.25 ns @ 30 pF

Minimum Operating Supply Voltage:

1.65 V

Logic Function:

Level Translator

Output Type:

Single Ended

Package Type:

SOT-23

Propagation Delay Test Condition:

30pF

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

3.6 V

Translation:

LVTTL to CMOS

Checking for live stock

This is Logic Level Translator LVTTL to CMOS 1.65 → 3.6 V 6-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is ADG3231BRJZ-REEL7. On the other hand, it is featured with 8ma of max. low level output current. The given dimensions of the product include 3 x 1.7 x 1.3mm. The product is available in surface mount configuration. It provides up to 10.25 ns @ 30 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The primary function of logic includes level translator. Furthermore, it has asingle ended output. The package is a sort of sot-23. Features 30pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a/an lvttl to cmos translation . It has a maximum operating temperature of +85 °c. It contains 6 pins. While a -8ma of maximum high level output current.

Switches and Multiplexers Product Selection Guide(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

ADG3231, 1.65 V to 3.6 V, Single-Channel Level Translator in SOT-23 Package(Technical Reference)
