Maximum Low Level Output Current:
10mA
Dimensions:
4.1 x 4.1 x 0.75mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
600ns
Minimum Operating Supply Voltage:
1.65 V
Logic Function:
Voltage Level Translator
Logic Family:
LVCMOS, LVTTL
Maximum High Level Output Current:
-15mA
Package Type:
TQFN
Output Type:
3 State
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Translation:
BiCMOS
Maximum Operating Temperature:
+85 °C
Pin Count:
12
Propagation Delay Test Condition:
15pF
Number of Elements per Chip:
4
Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)

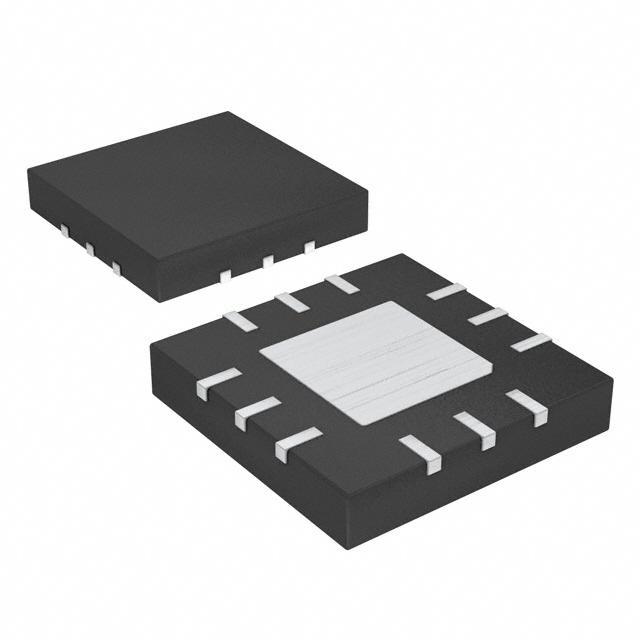

Package / Case:
12-WQFN Exposed Pad
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Open Drain, Push-Pull, Tri-State
Output Signal:
-
Data Rate:
6Mbps
Package:
Tube
Channel Type:
Bidirectional
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
1.65 V ~ 5.5 V
Voltage - VCCA:
1.2 V ~ 5.5 V
standardLeadTime:
7 Weeks
Number of Circuits:
1
Channels per Circuit:
4
Features:
Auto-Direction Sensing, Power Supply Decoupling, Thermal-Shutdown Protection
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
12-TQFN (4x4)
Base Product Number:
MAX3395
ECCN:
EAR99
